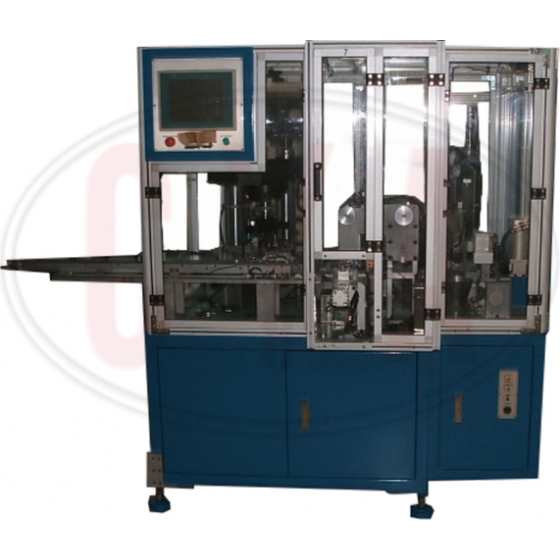

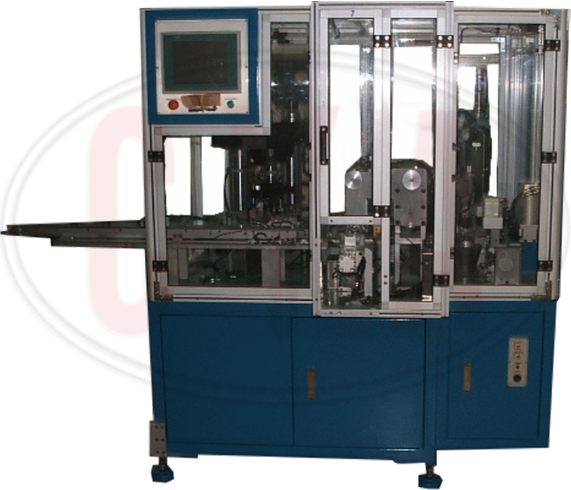

P100 -Key-bit Punching
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 220 cm x 160 cm x 190 cm
- Machine Weight (approx.): 2300 kg
- Power Supply: 220V / 3Ø 50Hz
- Air Supply: 5 bar
- Cycle Time: 2.5 sec/ 1 part
Products
Punch bitting machines punch a fixed code pattern and marking number into the key blanks. A change out cartridge die is used to change the code geometry and key code numbers. This type of machine, ideal for large quantities of Key Alike keys, also de-burrs and rings the keys. A magazine stacker or a vibratory feeder bowl with hopper automatically feeds the key blanks. Key blanks are unloaded to the 6-box carousel for collecting keys. Key bit pitch and depth can be controlled by punch dismounted on hydraulic cylinder unit.
