W30 Wafers in Stack
Technical Data:
• Control System: HMI and PLC/PC
• Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
• Machine Size (approx.): 270cm x 90cm x160cm (function of machine design)
• Machine Weight (approx.): 2100kg (function of machine design)
• Power supply: 3 Ø 400V 50Hz
• Air pressure: 20A; 50KA
• Cycle time: 1 sec / wafer (for each feeder bowl)
Products

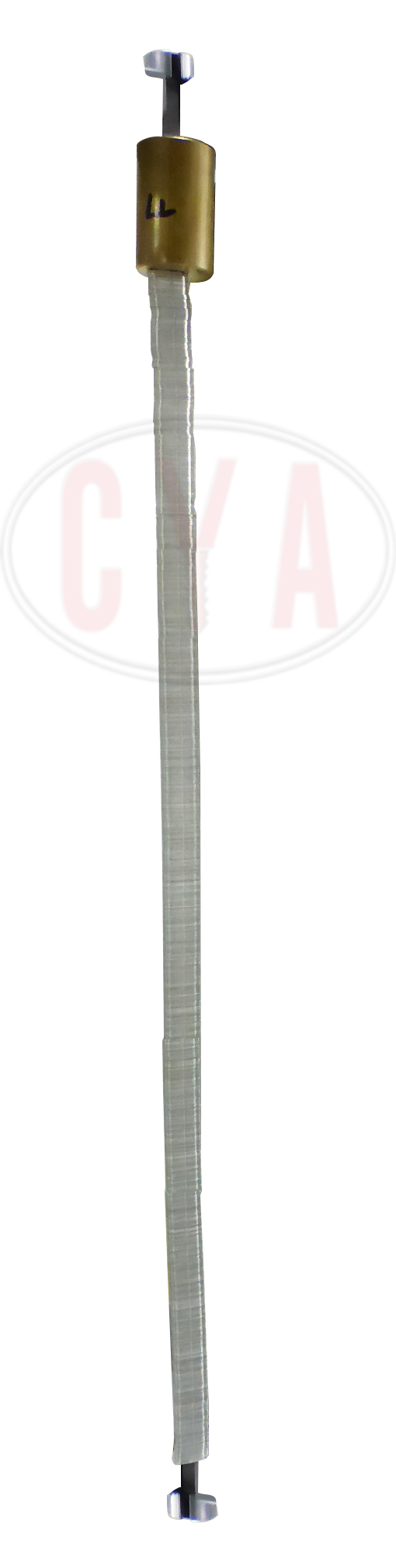

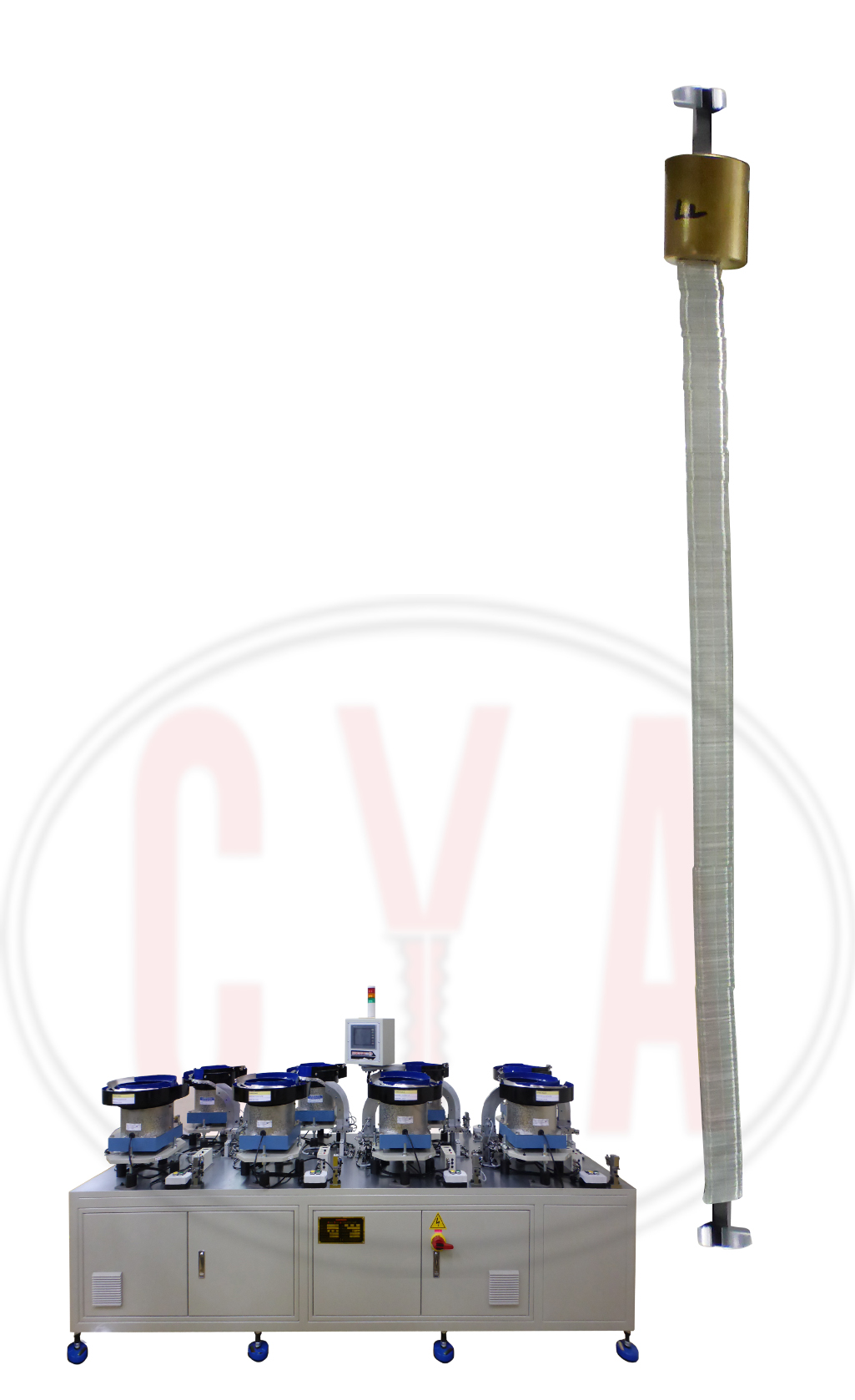

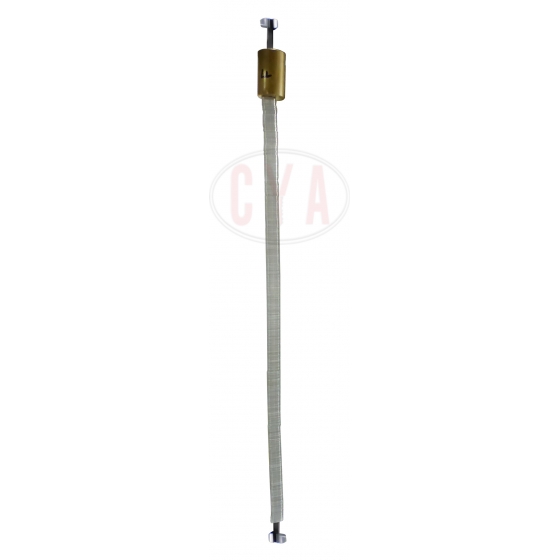

Wafer (tumbler) stacking machines orient wafers (tumblers). Feeder bowl feeds wafers (tumblers), orients them to the same direction, and automatically loads the wafers (tumblers) onto rods. Machine W30 can be ordered with any number of feeder bowls. Next, the assembly machine (W50 / W100 / W200) can use the stack within wafers as the way for magazine loading the wafers. In this W30 machine, each bowl can deal with different codes of wafers; just need do to clean the bowl before changing the code of wafers.
