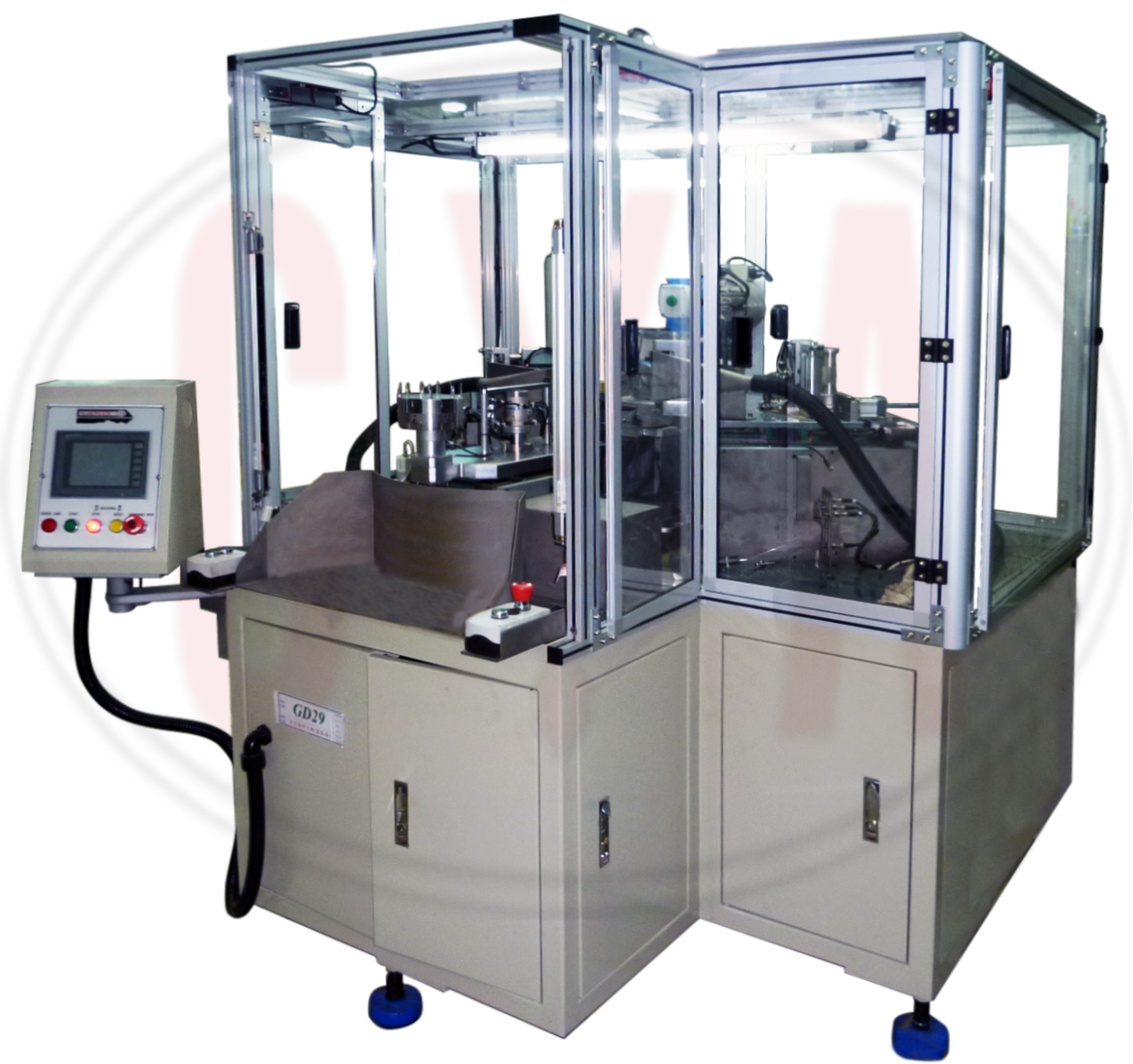

PM100 Pin Milling Machine
Technical Data:
• Control System: HMI and PLC/PC
• Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
• Machine Size (approx.): 200cm x 170cm x 200cm
• Machine Weight (approx.): 1500kg
• Power supply: 220V / 3Ø 60Hz
• Air pressure: 5KVA, 600L/Min
• Cycle time: 34 sec/ 6 sets (including manual loading / unloading)
Products

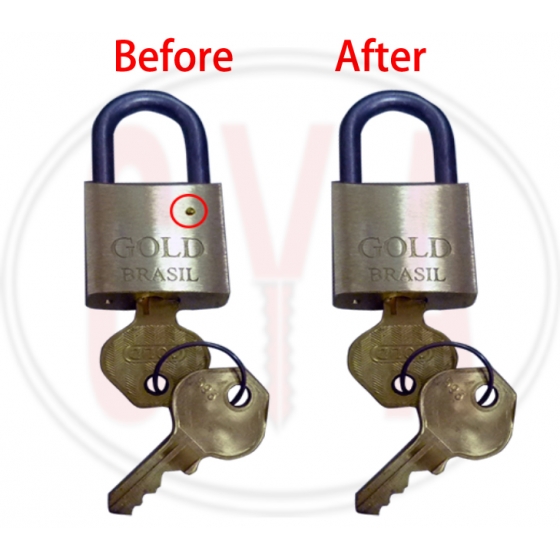

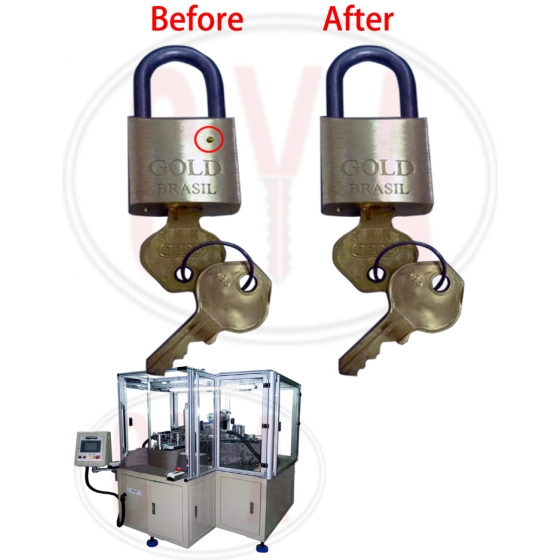

The pin is the shackle retainer pin to lock the shackle into the padlock body. After assembling, the pin will show out. Manual loading the padlock with the key inserted into fixture in Station 1. Next, the milling station will mill the pin to the face. Finally, the polishing station will polish the 2 curved faces into shinny bright. Operator takes out the finished padlock from station 1.
