T100 Tapping
Technical data
• Control System: HMI and PLC/PC
• Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
• Machine Size (approx.): 130 cm x 150 cm x 160 cm
• Machine Weight (approx.): 700 kg
• Power supply: 220V / 3Ø
• Air pressure: 6 bar
• Cycle time: 5 sec/ part

Products

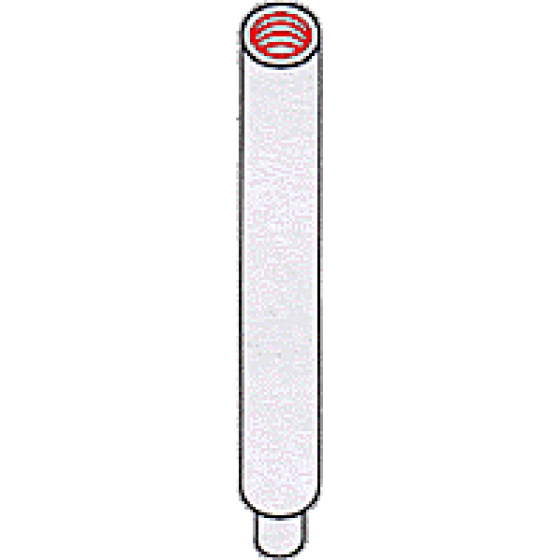

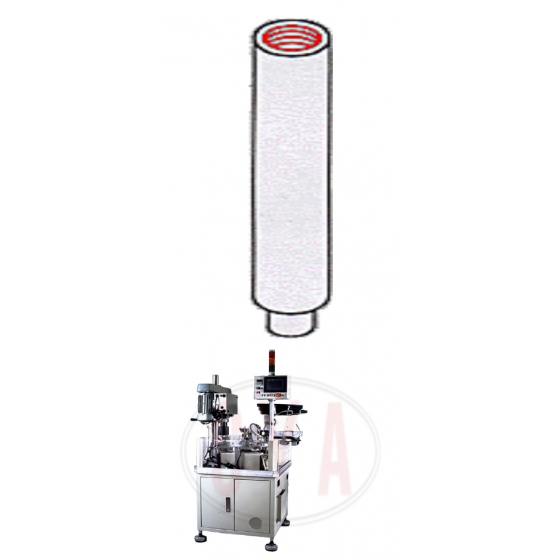

Tapping machines tap holes to the proper thread. A vibratory feeder bowl feeds the part to a nest. Depending on requirement for single or dual tapping head, the machine threads the hole (holes). Parts are automatically unloaded to a chute. Bowl feeder loading 2 tubes into the fixture in station 1 automatically. Then a 2-head tapping unit will do the tapping work. Also, in another station, a checking unit will check the tapping drill is broken or not in the tube. So, totally, the all finished Parts are checked 100%.
