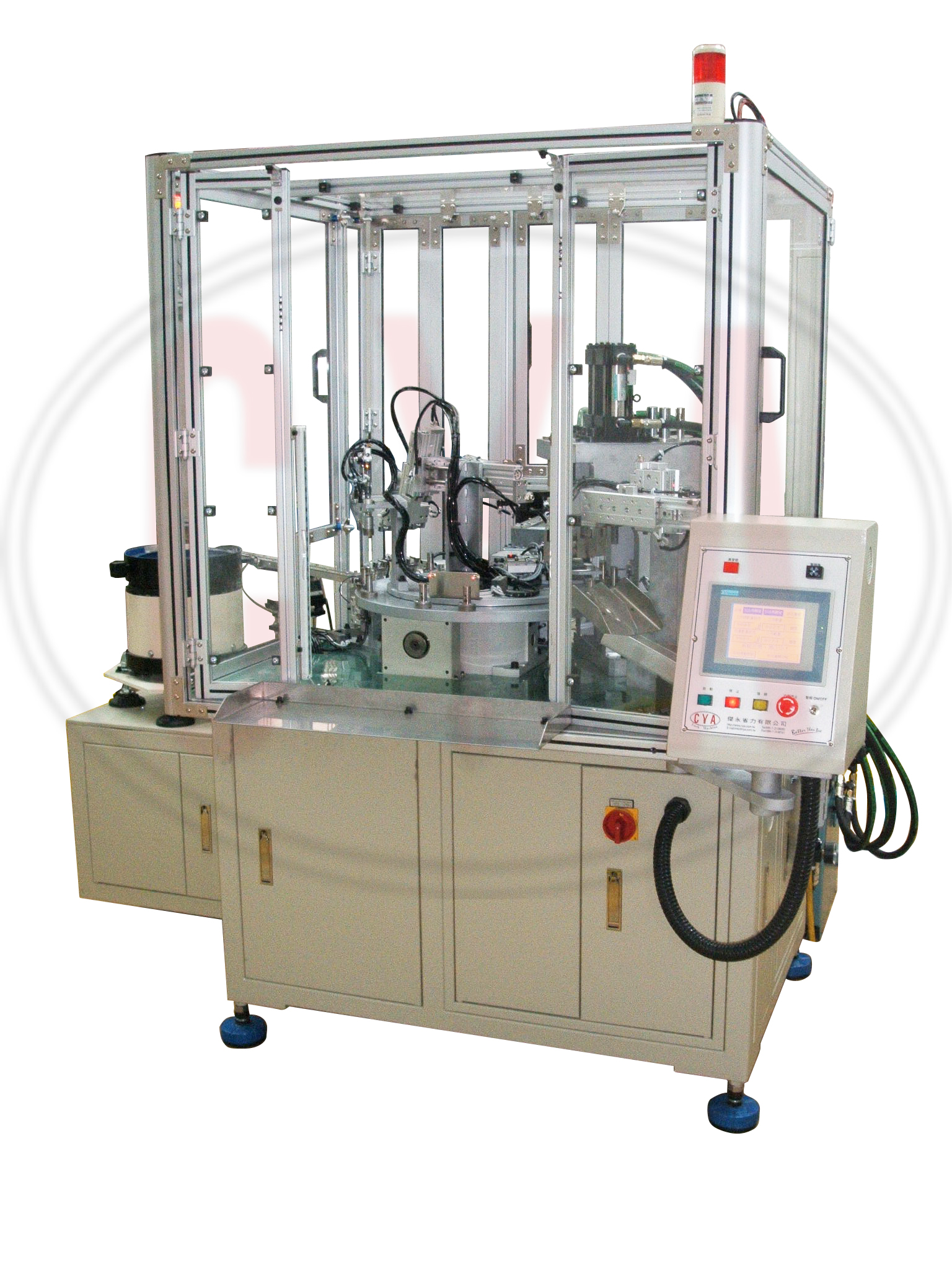

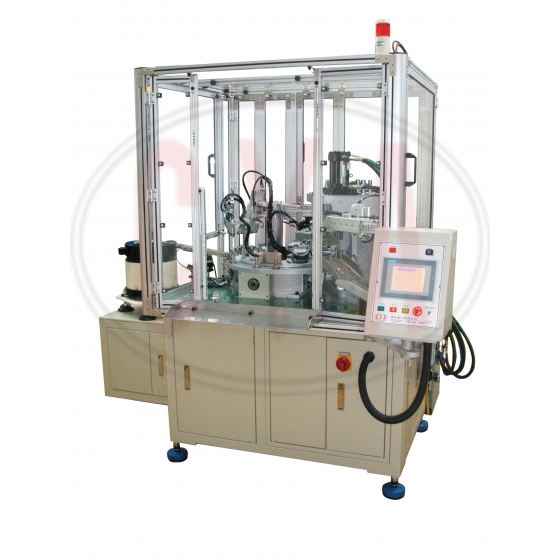

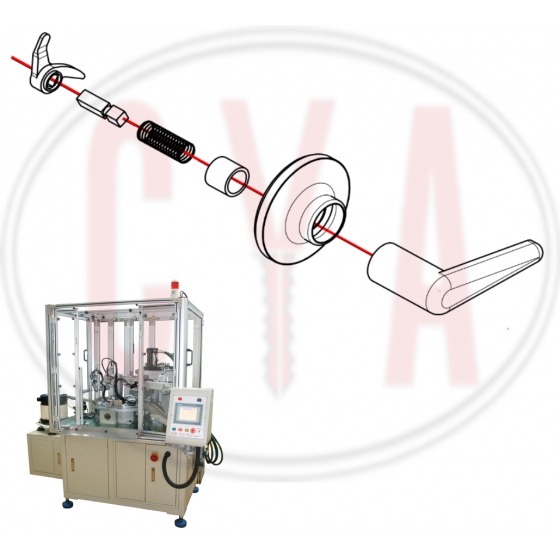

A120 -Lever Shaft Assembly
Technical data
- Control System: HMI and PLC/PC
- Error code trouble shooting guide display on HMI screen
- Machine Size (approx.): function of machine design
- Machine Weight (approx.): function of machine design
- Power supply: 3 phase 220 V
- Air pressure: 6 bar
- Cycle time: function of machine design
Products

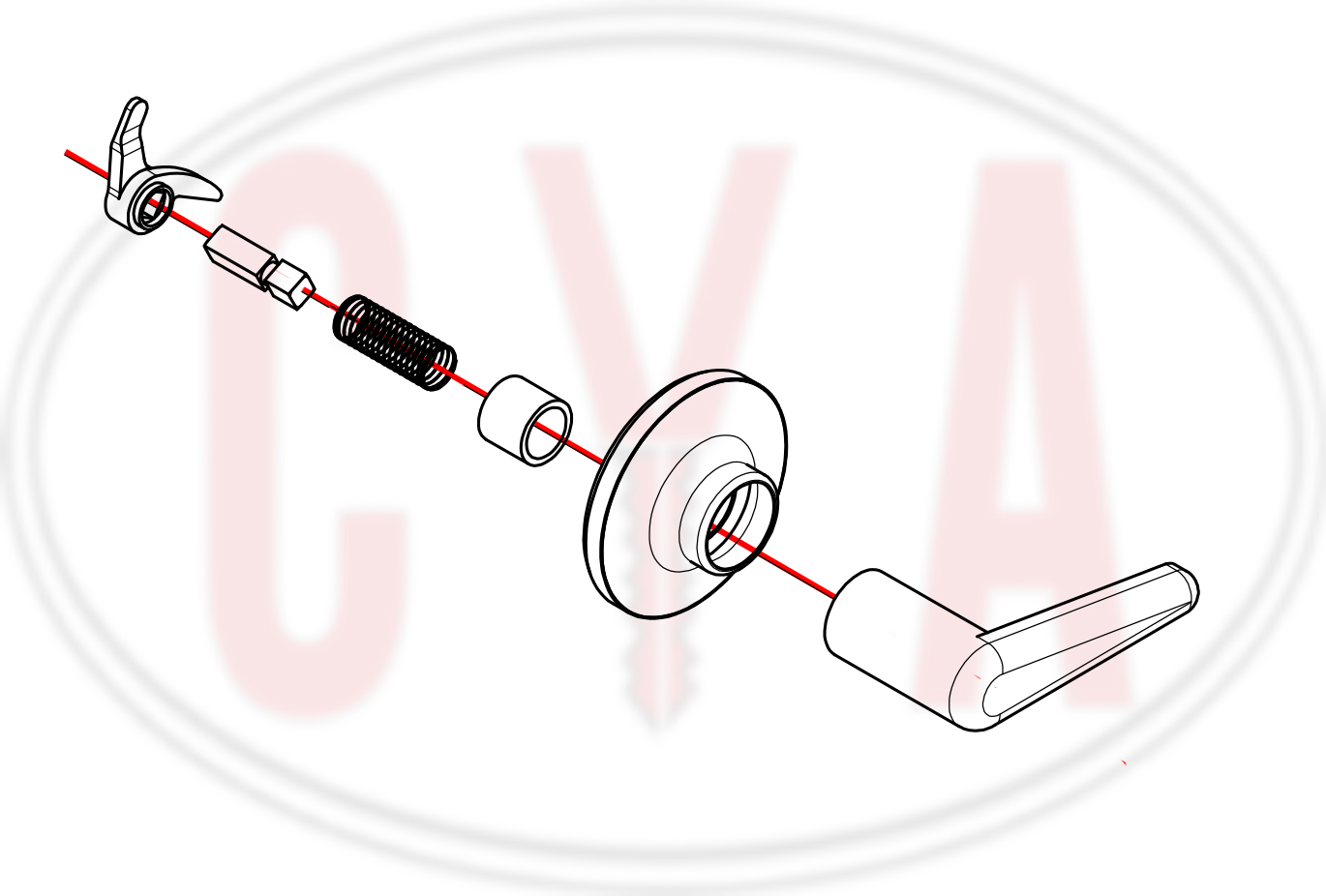

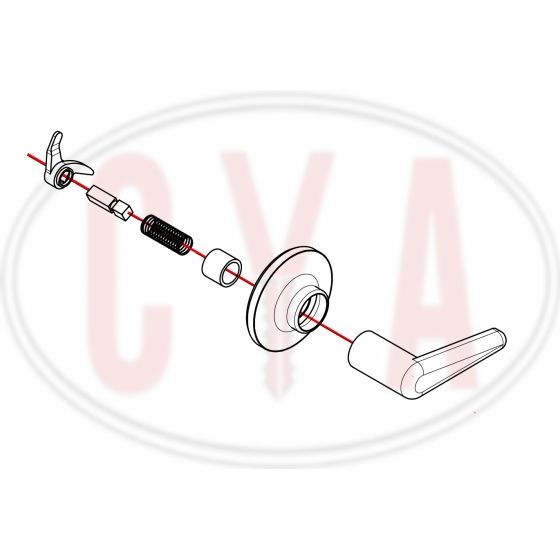

Lever shaft assembly machines are customized to assemble all required components of the lever shaft. Levers are loaded into the fixture by hands. Roses are manually loaded to the conveyor one by one. Then the chuck clamps the rose onto the fixture. After all the assembly works are done, there is one more testing station to check the finished assembled parts
