A140 -Spring Set Assembly
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): function of machine design
- Machine Weight (approx.): 1200kg (function of machine design)
- Power supply: 3 phase 220 V
- Air pressure: 6 bar
- Cycle time: 3 sec / 1 assembly (function of machine design)
Products

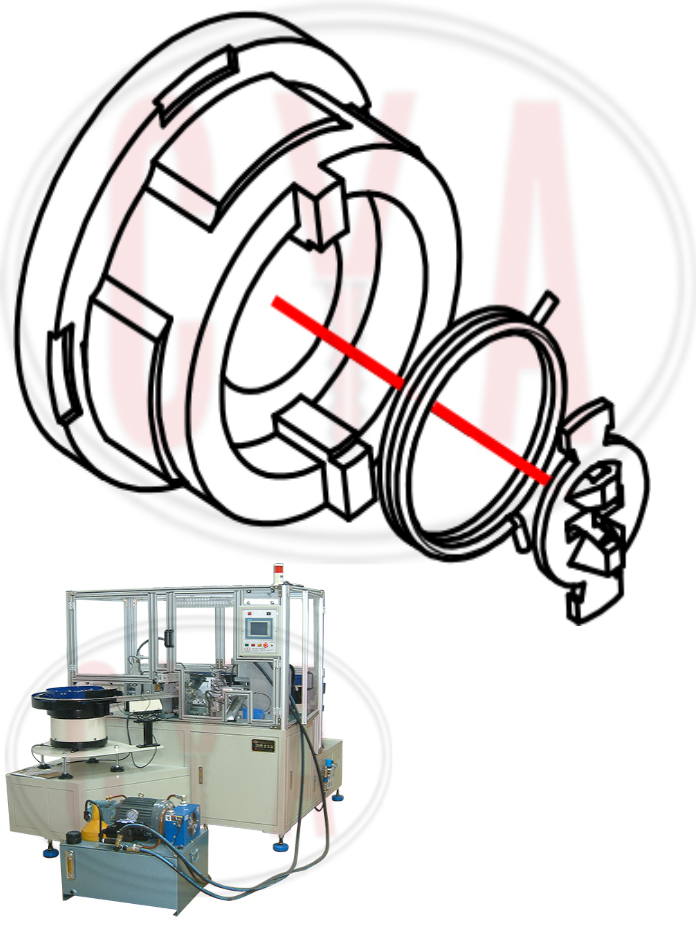

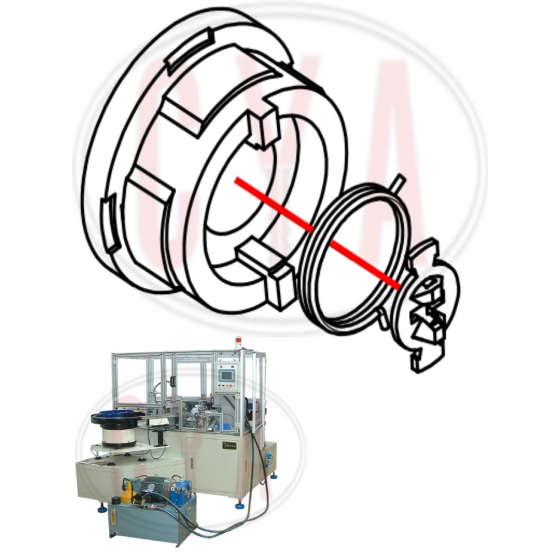

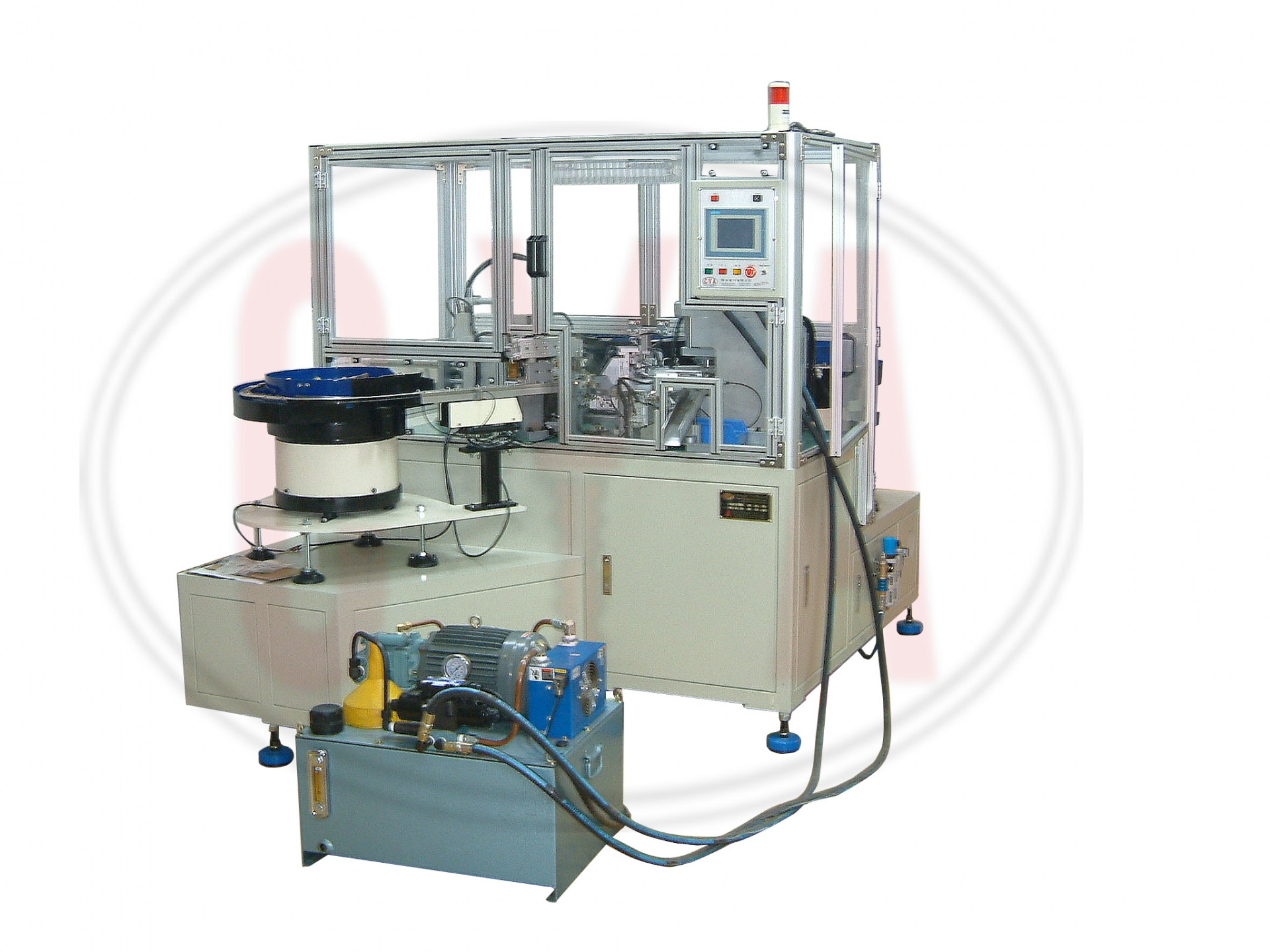

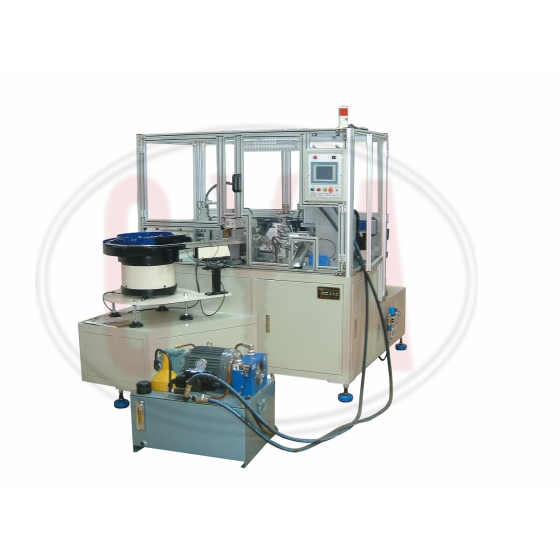

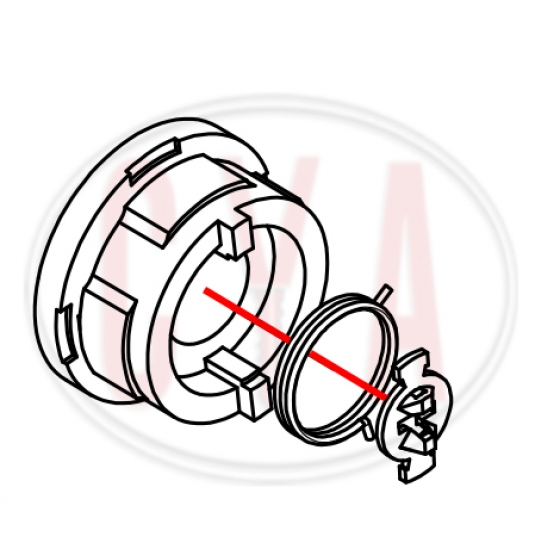

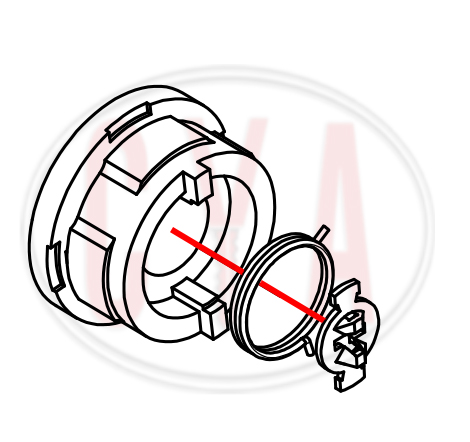

Spring set assembly machines are customized to assemble the required components. Cases and springs are loaded automatically by the feeder bowls. While assembling, the grease is fed on the springs and the springs rotated by the mechanism to the set position. The final assembly is automatically unloaded into a chute.
