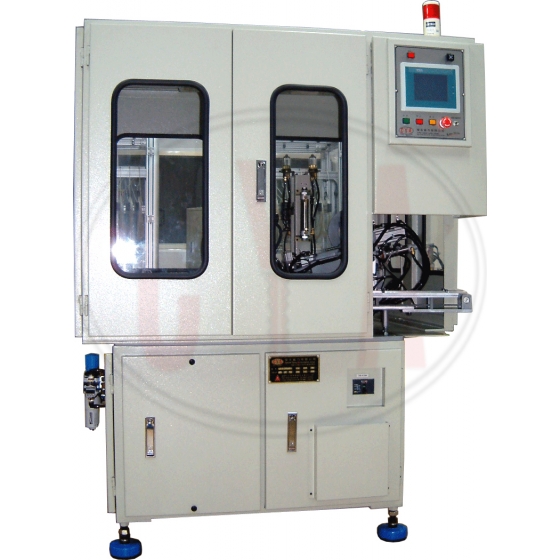

S100 -Stainless Sanding
Technical data
  • Control System: HMI and PLC/PC
  • Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
  • Machine Size (approx.): 140 cm x 140  cm x 180 cm
  • Machine Weight (approx.): 900 kg
  • Power supply: 3 phase 220V
  • Air pressure: 6 bar
  • Cycle time: 5sec / 1 part
Products

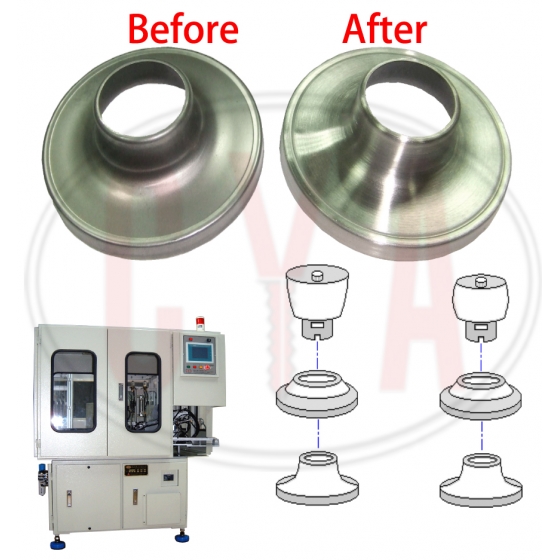

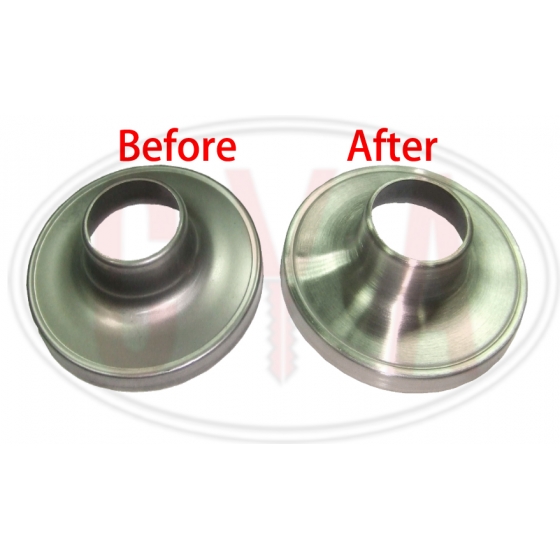

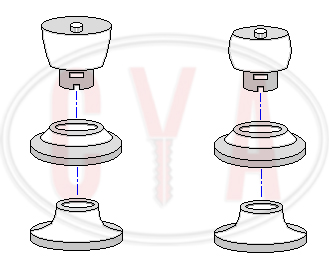

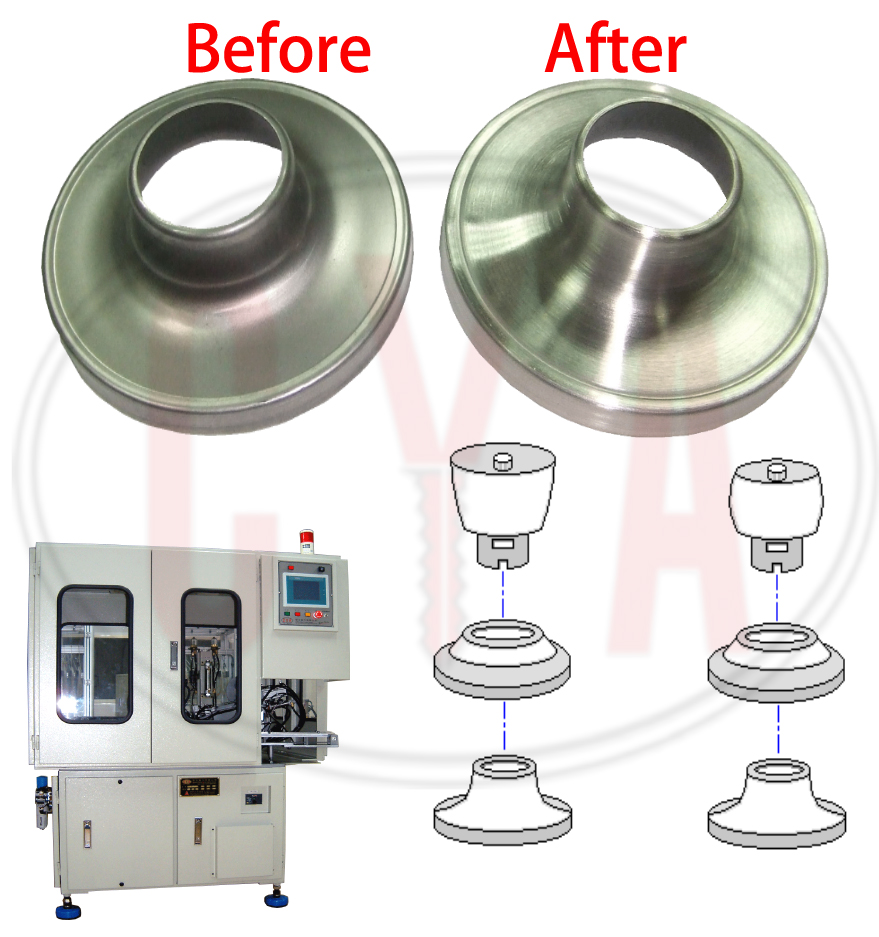

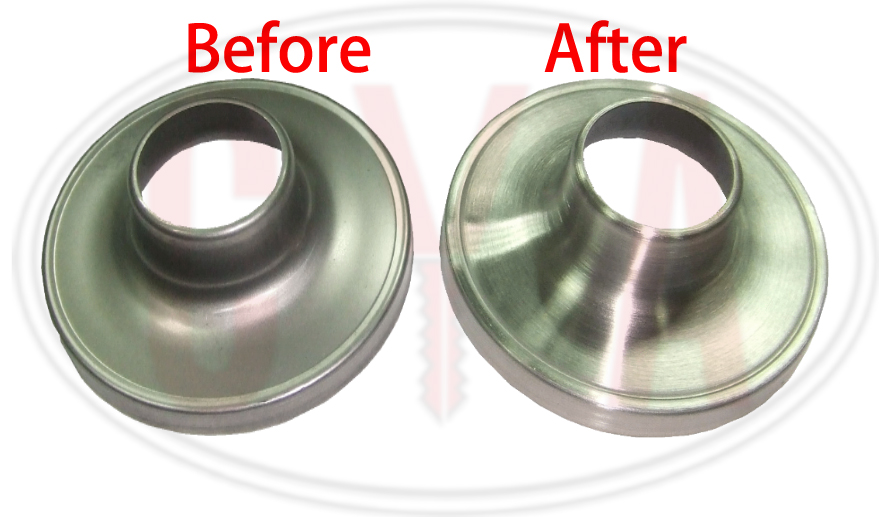

Knob and rosette sanding machines sand and polish round surfaces such as door knobs and decorative rosettes. The parts pass through three successive stations with different abrasive medium and automatically unload. An operator manually loads the parts on the conveyer. The chuck will clamp the PART into fixture. The fixture will hold the PART automatically and rotates it self with high speed. Then several sanding heads with sanding paper will touch the PART for polish. The pressure of touching could be adjusted. After polishing, the finished PART could be unloaded to another conveyor. One person can take care of 5 machines at the same time.
