S400 -Padlock 4 Faces Sanding
Technical data
  • Control System: HMI and PLC/PC
  • Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
  • Machine Size (approx.): 210 cm x 205 cm x 250 cm
  • Machine Weight (approx.): 2500 kg
  • Power supply: 3 phase 220 V
  • Air pressure: 6 bar
  • Cycle time: 5~6 sec / 1 part
Products

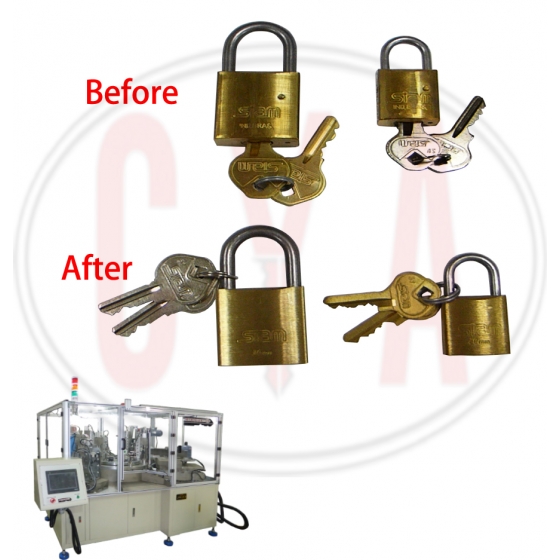

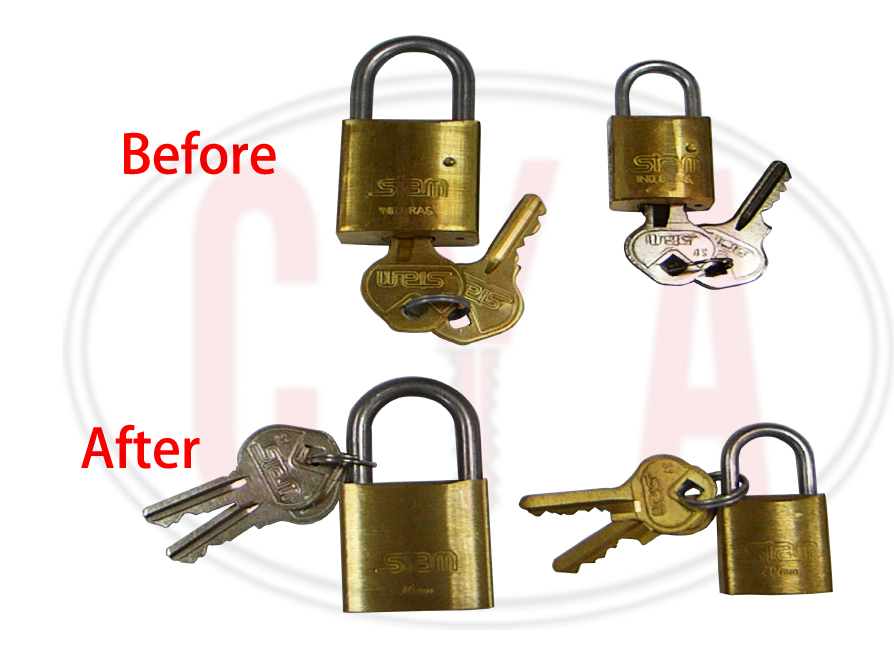

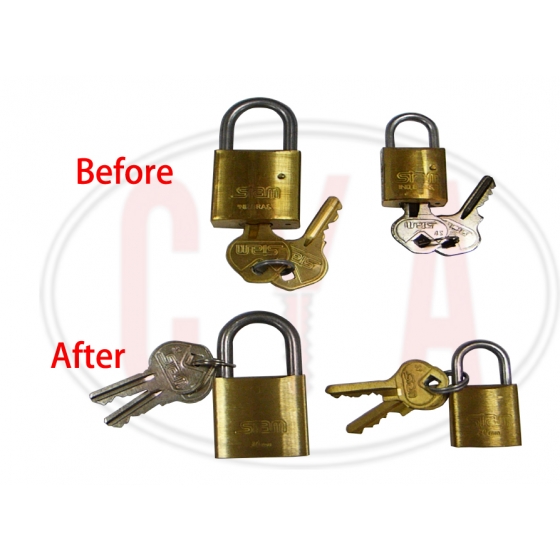

This machine is designed for polishing 2 flat and 2 circular face of padlock. An operator loads padlocks into the nest on one round index table. Retainer pin outside the padlock is milled away first and then the 4 faces will go through rough sanding and then fine sanding process. Finished padlocks are unloaded manually by the operator. Vacuum system is available for efficient chip collecting.
