DNC400 -Pinhole Drilling (Multi-axis)
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 140 cm x 120 cm x 220 cm
- Machine Weight (approx.): 1200 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: function of the number of holes to be drilled
Products

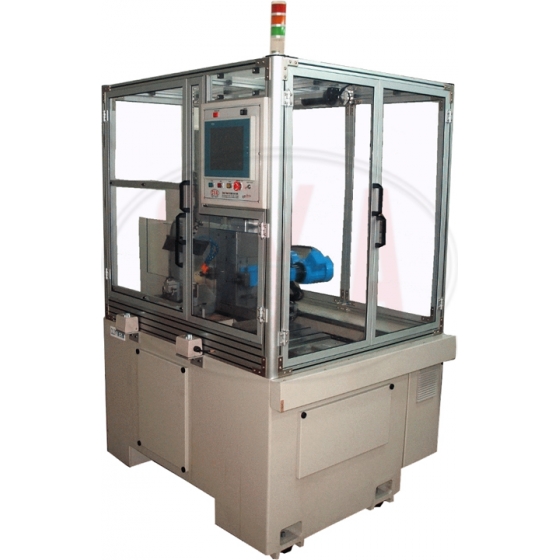

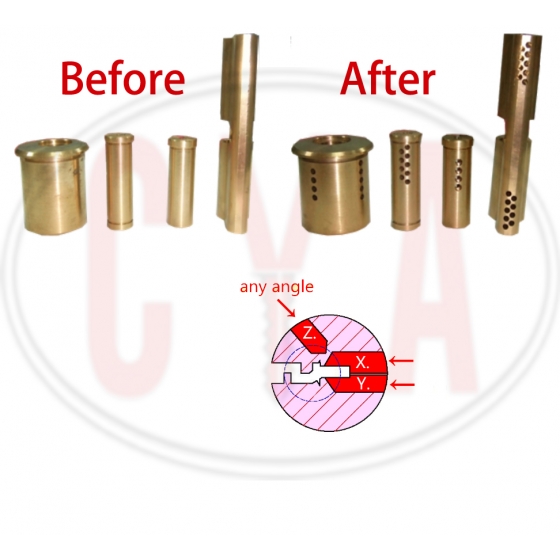

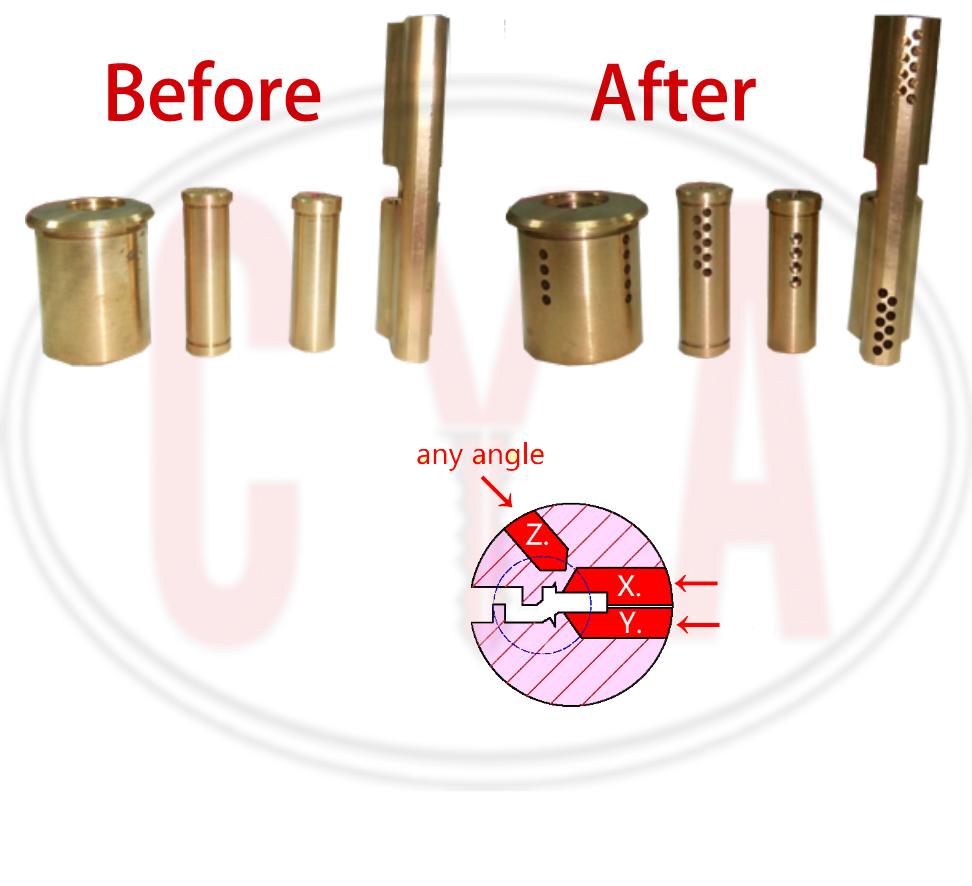

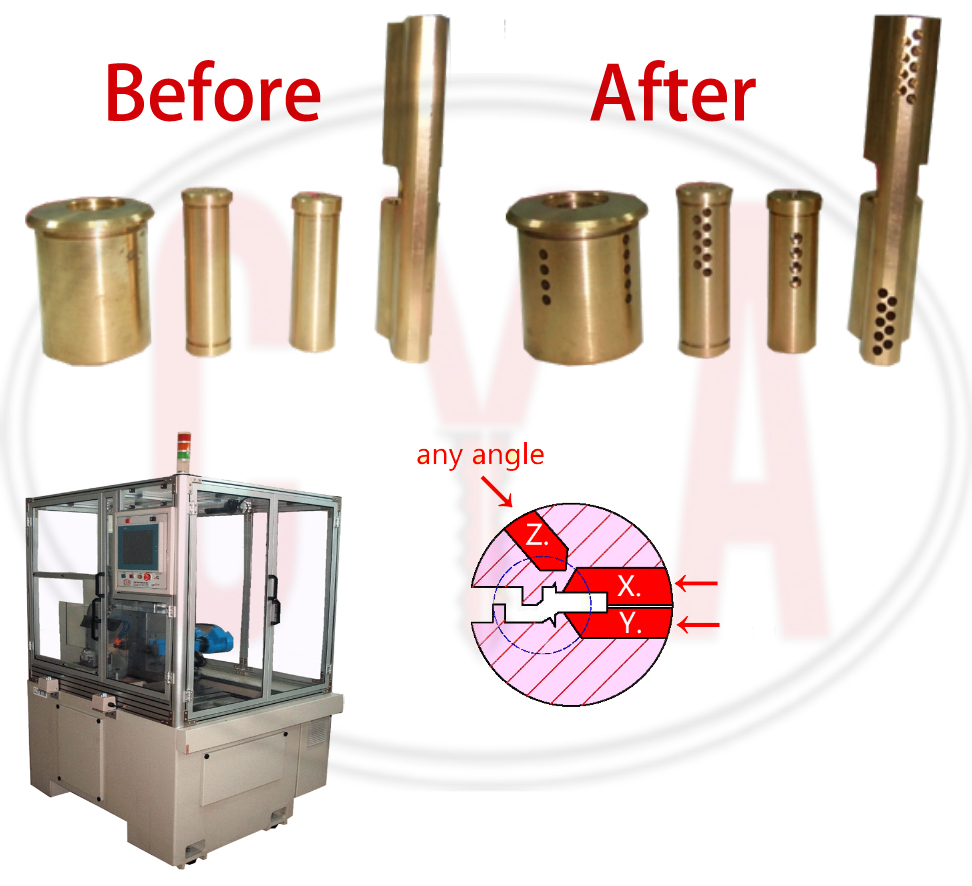

This machine is designed for drilling several rows of pin holes on one cylinder. The operator manually put the cylinder into the fixture. The fixture with R axis is able to rotate to correct position and drilling unit with servo control is able to drill correct depths and pitches. After the drilling process, it requires the operator to take out the finished cylinder manually.
