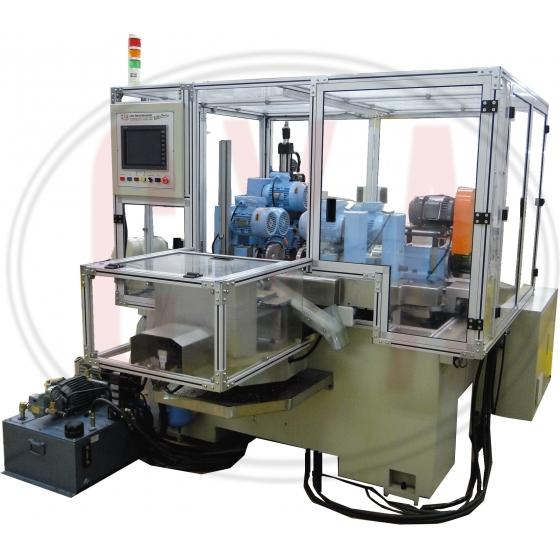

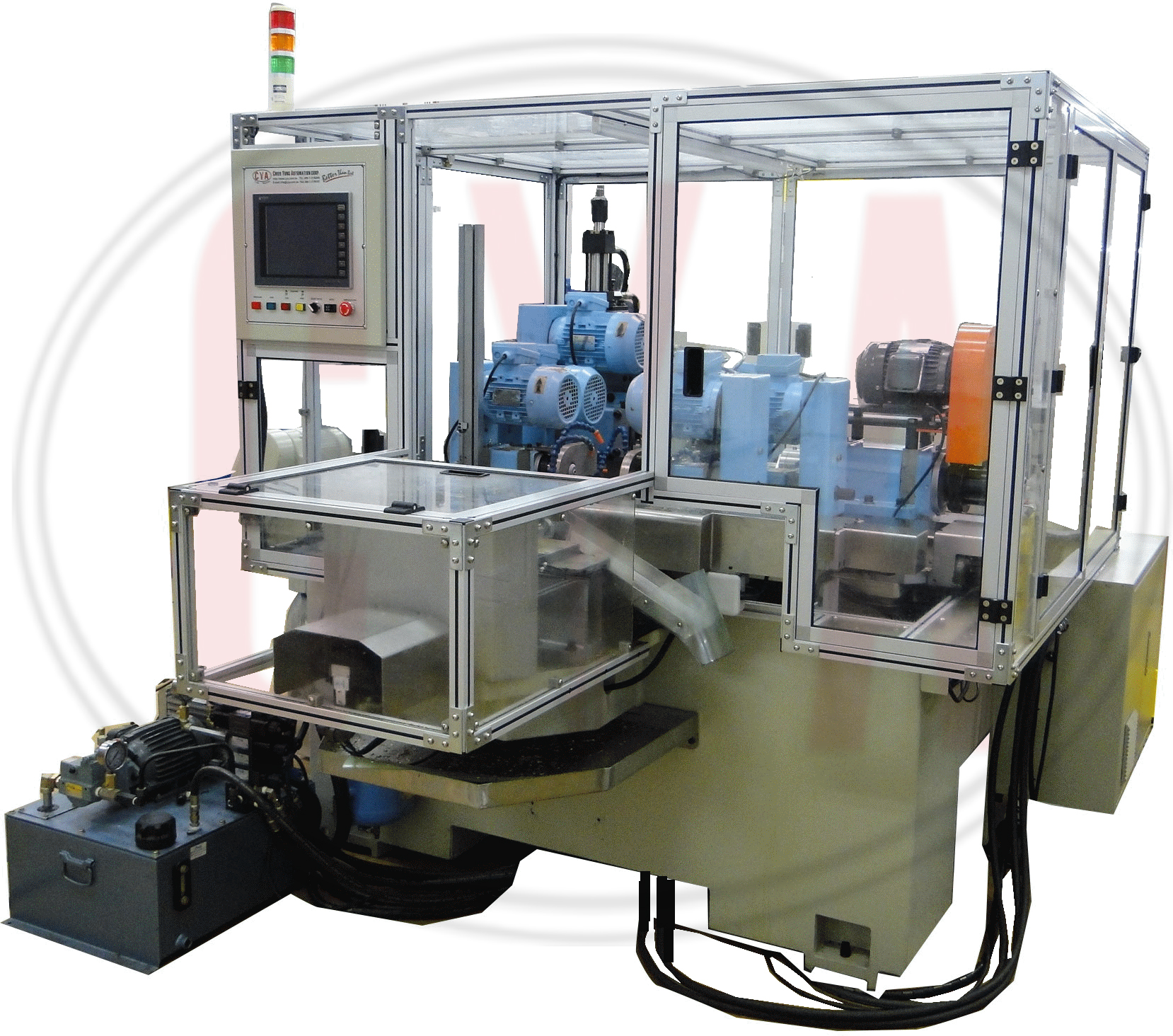

CHF100 -Cylinder Housing Forming
Technical data
- Operation panel: M.M.I (man-machine interface) touch sensitive panel
- Error code trouble shooting are shown on the touch screen
- Machine Size (approx.): 290 cm x 260 cm x 195 cm
- Machine Weight (approx.): 2500 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 70sec/ 1 piece (The total length of the European Profile Cylinder is 60mm)
Products

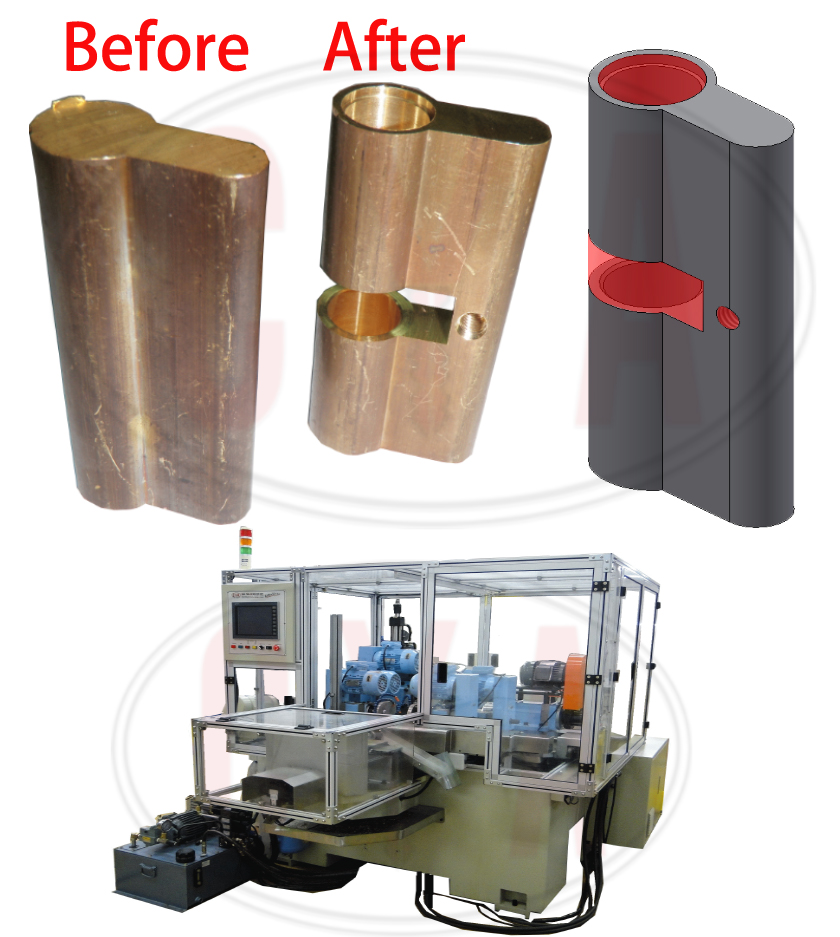

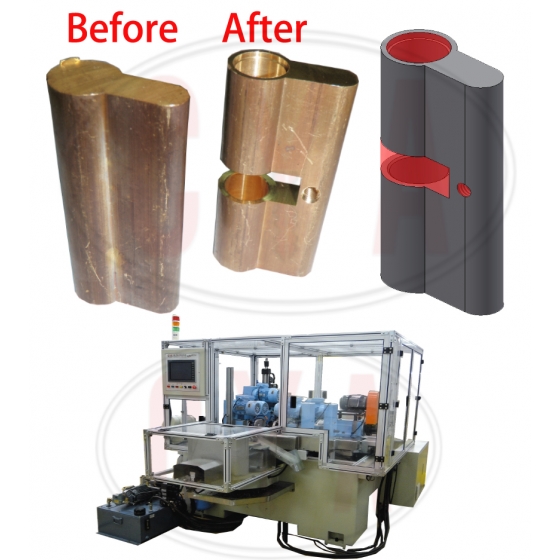

This machine is designed for drilling and cutting European Profile Cylinders (EPC) within 7 servo motors in sequence: cutting the length, drilling on both sides, milling a slot in the center, facing double sides of inner holes, and M5 hole drilling and tapping. After all processing, the EPC gets back to the original position and another driller makes a chamfer on the opposite side of M5 screw hole, then it is pushed out into a box.
