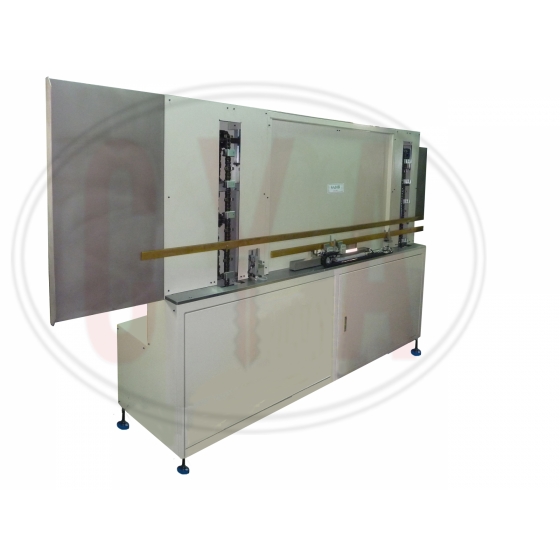

This bar feeder is designed for loading the brass bars into the first station of the padlock forming machine. One operator put in brass bars into the clamps. The feeder will automatically load one brass bar into the padlock machine into position. When one bar is finished, it will feed another brass bar automatically.
Technical data
- Machine Size (approx.): 359 cm x88 cm x 230 cm
- Machine Weight (approx.): 1,600 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar

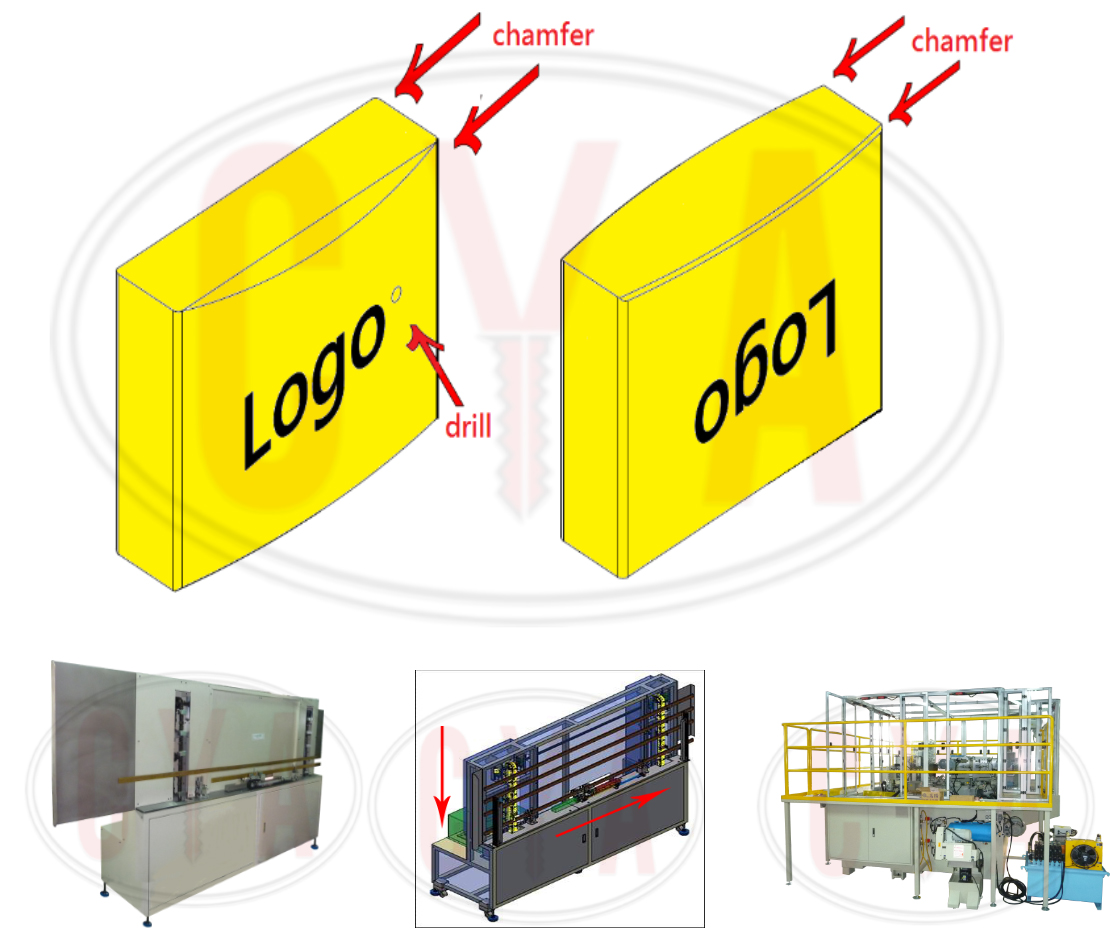

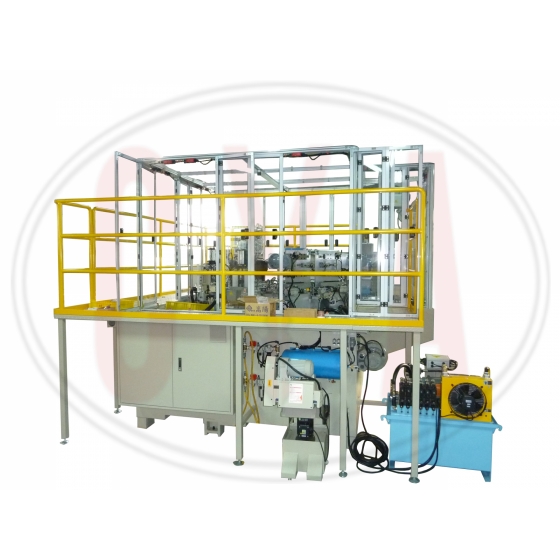

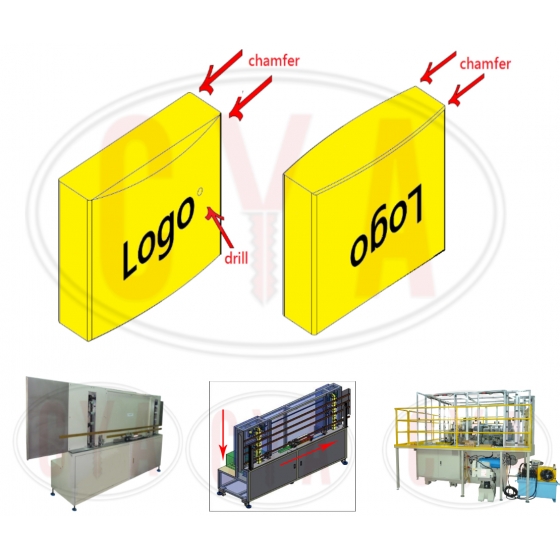

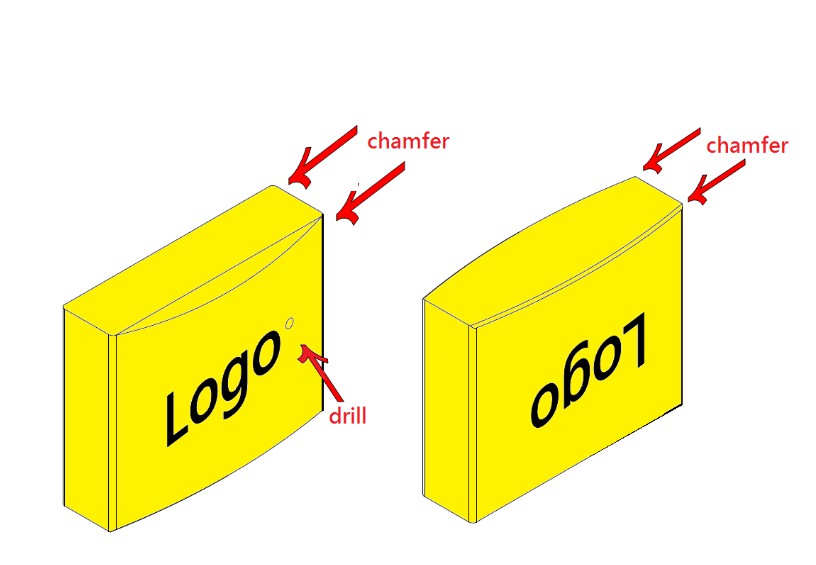

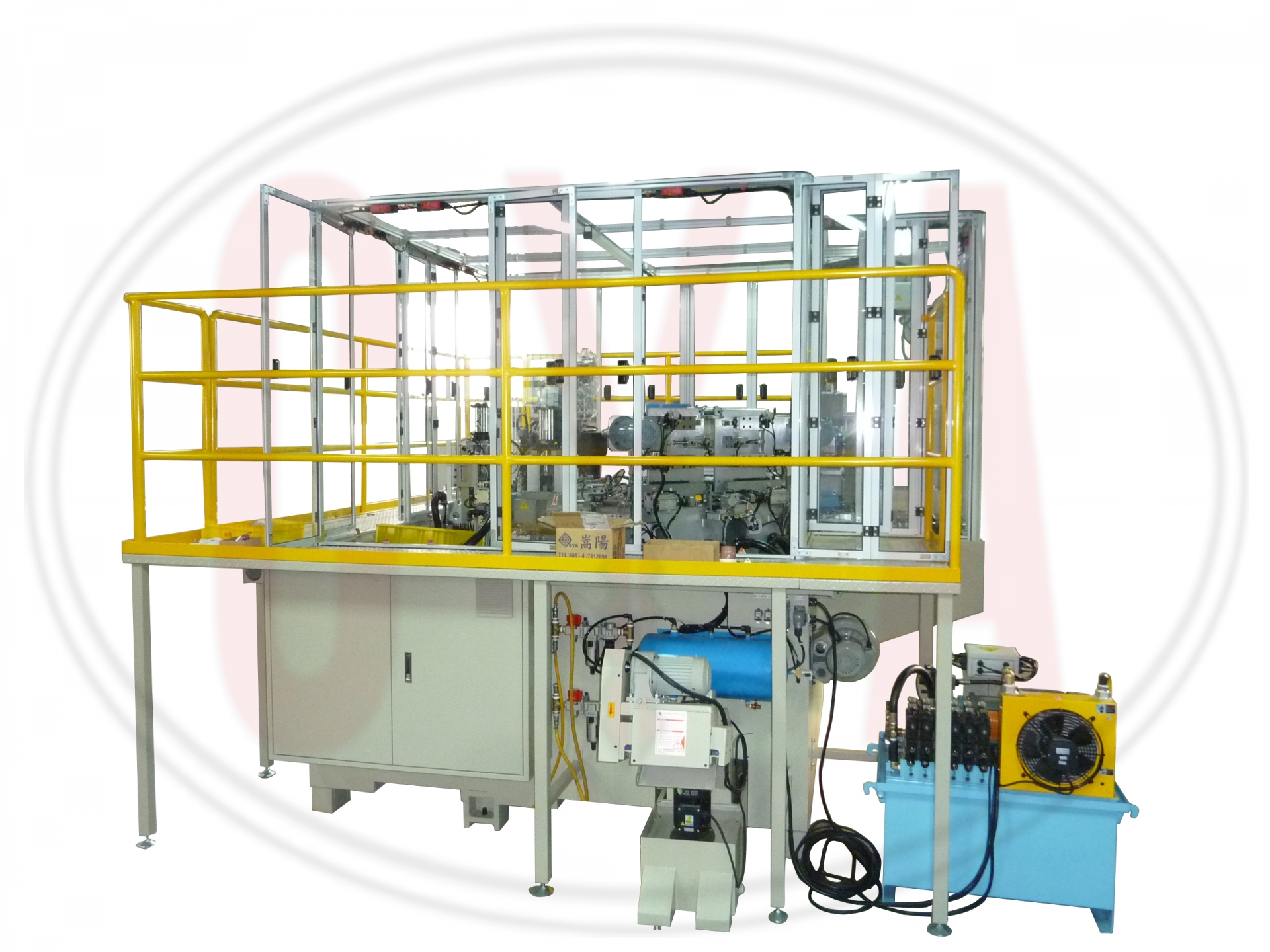

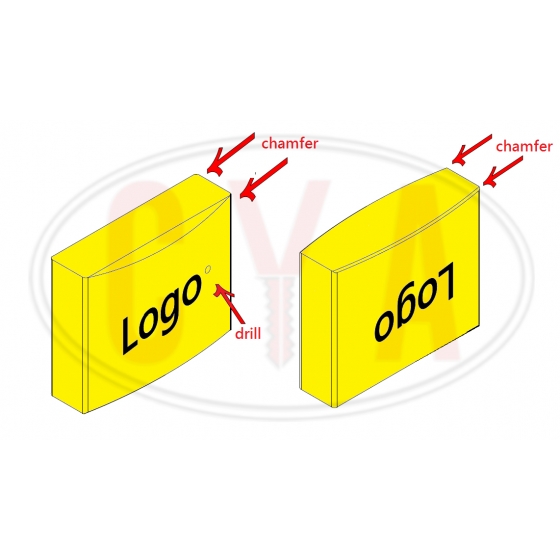

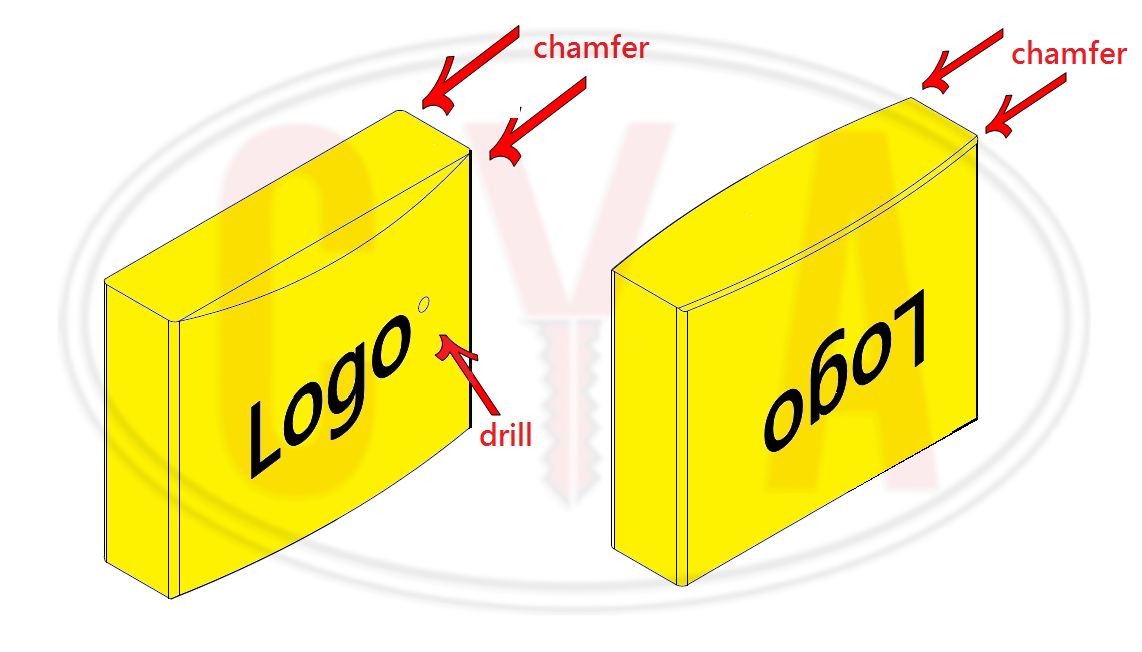

This automatic machine is designed for making padlock body depending on different Machine Size (approx.) of brass. Operator manually load brass bar on the previous bar feeder, and machine can automatically cut and transfer padlock body into the index and put body to appropriate location for sanding padlock radius face, chamfering top and bottom, marking logo and drilling shackle retainer pin hole. After production process, padlock body is unloaded to the conveyor transferring to next machine.
Technical data
- Operation panel: M.M.I (man-machine interface) touch sensitive panel
- Error code trouble shooting are shown on the touch screen
- Machine Size (approx.): 679 cm x 385 cm x 220 cm
- Machine Weight (approx.): 8500 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 9sec/ 1 piece
