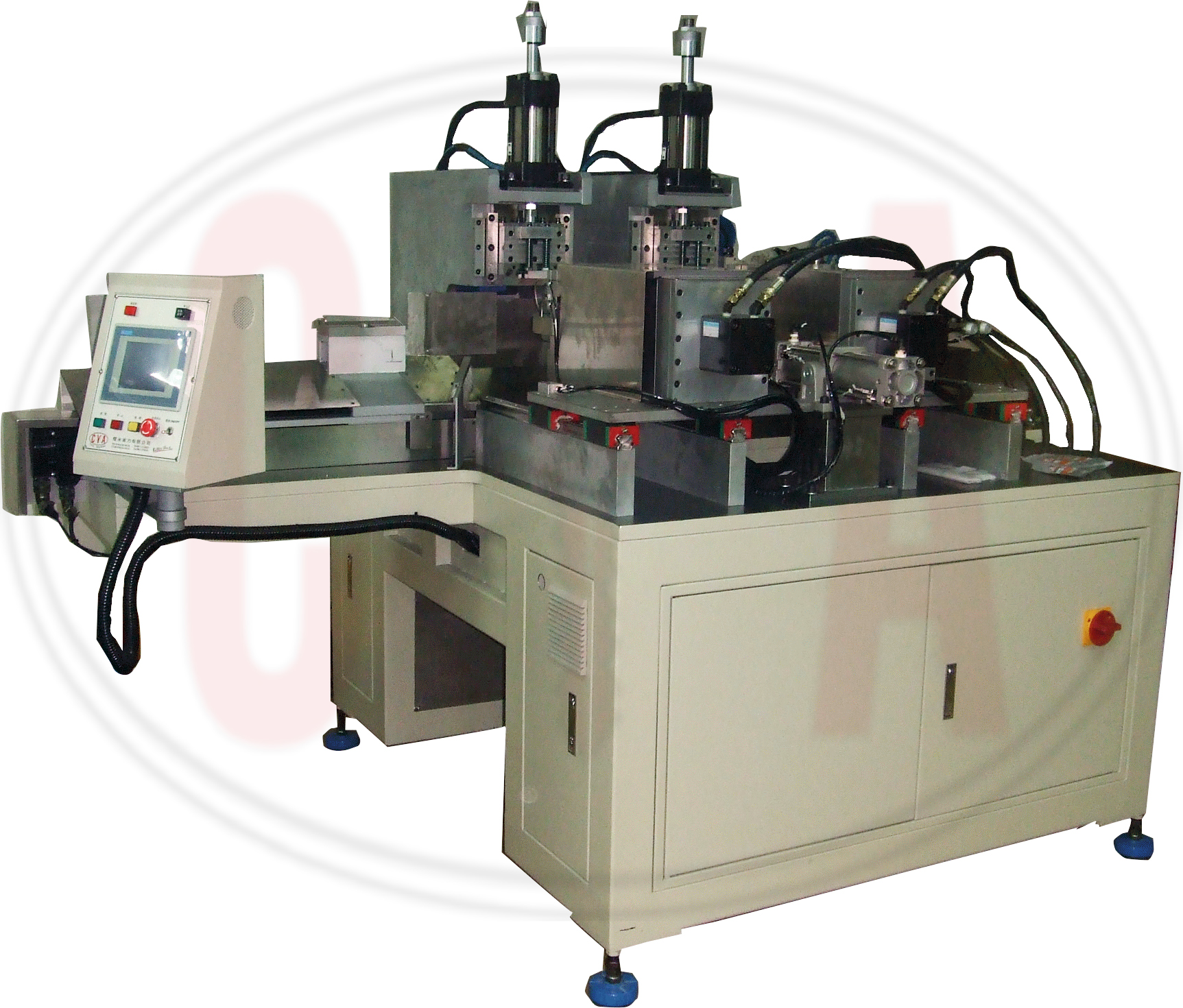

DCF100 -Door Closer Forming and Holes Drilling
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 284 cm x 193 cm x 195 cm
- Machine Weight (approx.): 2000 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 30 sec/ 1 piece
Products

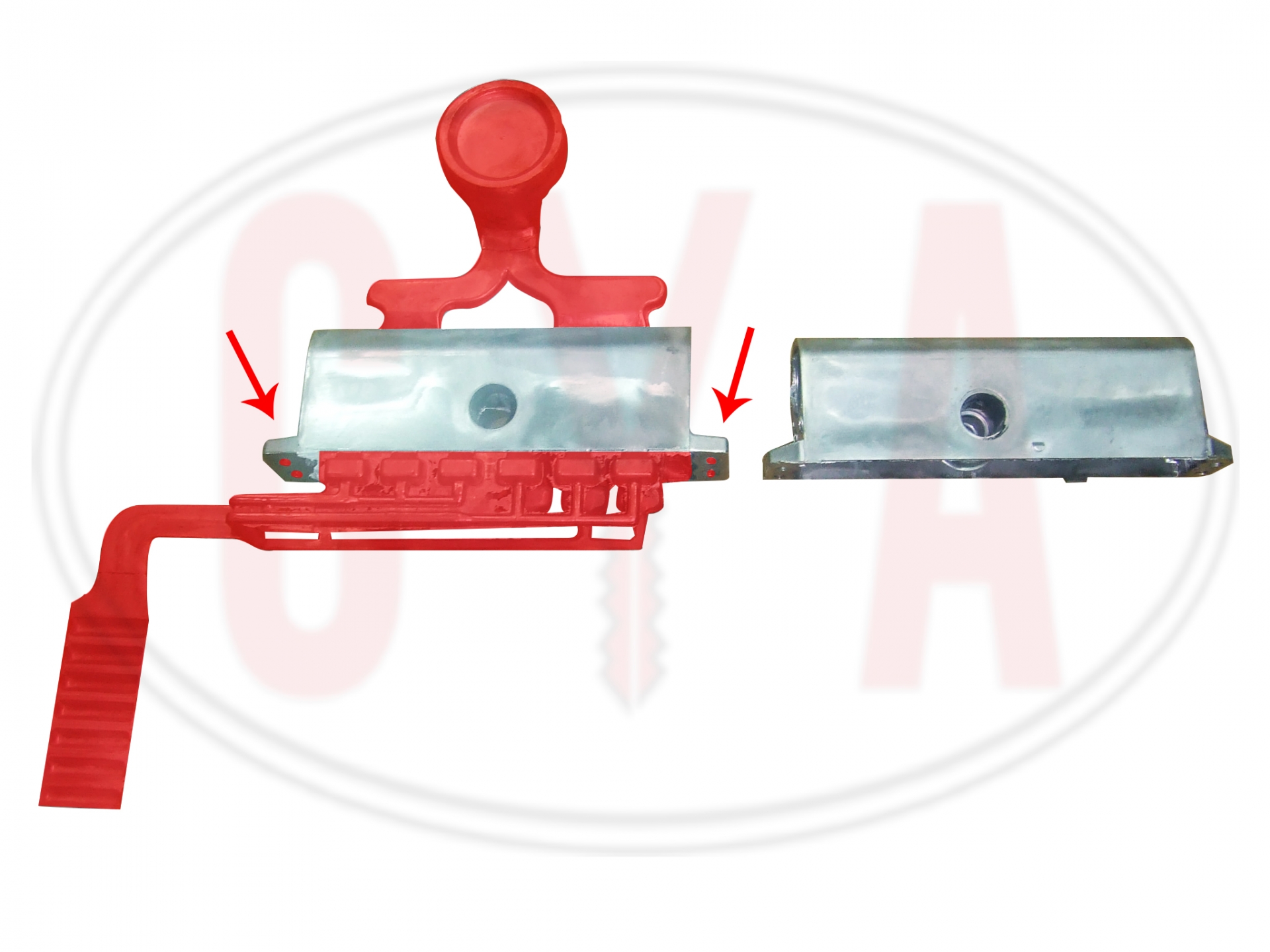

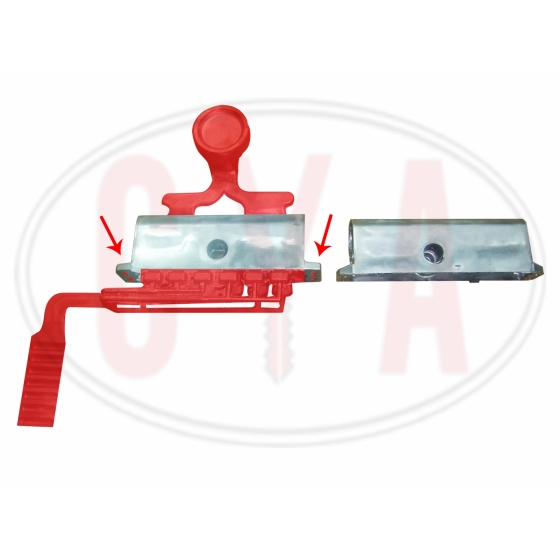

The body of the door closer is made out by Die-Casting machine. The body will have some feet with it when it is generated through the machine.

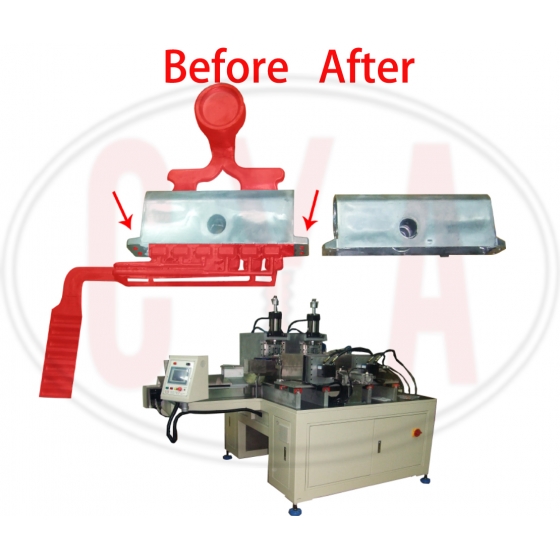

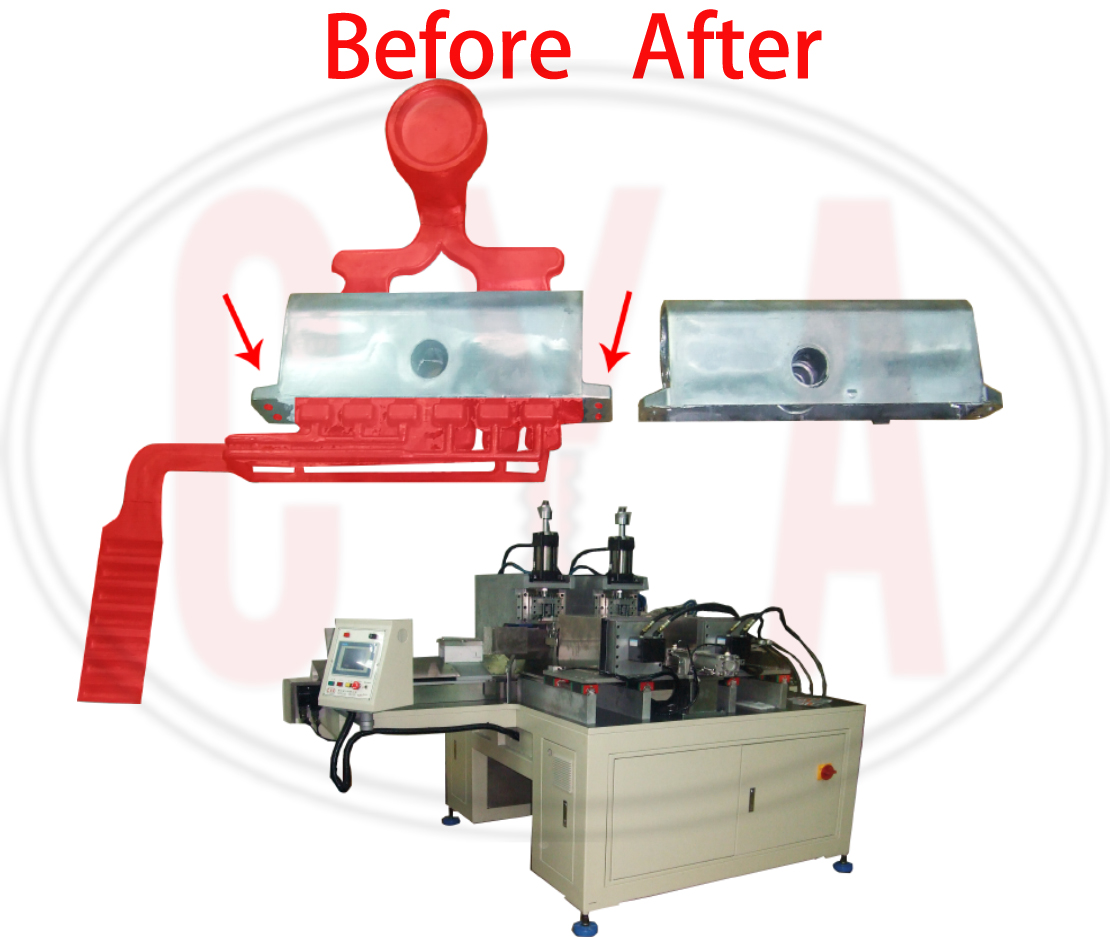

Our machine has 2 main functions for the part. One is to cut the feet out of the body. The other function is to do the tapping work on the mounting holes of the body.
Manual loading the PART in the fixture by hand and the part will be transferred to the working station. And will be moved back to the original position when the work is finished.
