B245 -Double Side Key Bitting (1 function)
Technical data
  • Control System: HMI and PLC/PC
  • Screen Display: machine commands, error codes, trouble shooting guide, and production statistics
  • Machine Size (approx.): 160 cm x 220 cm x 190 cm
  • Machine Weight (approx.): 800 kg
  • Power Supply: 220V / 3Ø
  • Air Supply: 6 bar
  • Cycle Time: 4 sec/ 1 part
Products

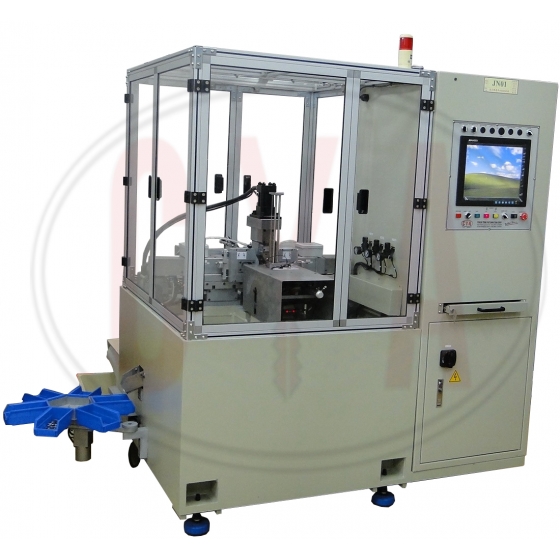

This machine is designed for key bitting only. A single operator needs to load the keys into the magazine. The cylinder transfers the keys to the jigs for key biting. After biting, the machine unloads the finished keys to the box for collecting. The machine is controlled by computer. The machine is controlled by computer to set up key biting type and also easy for troubleshooting by error messages.
