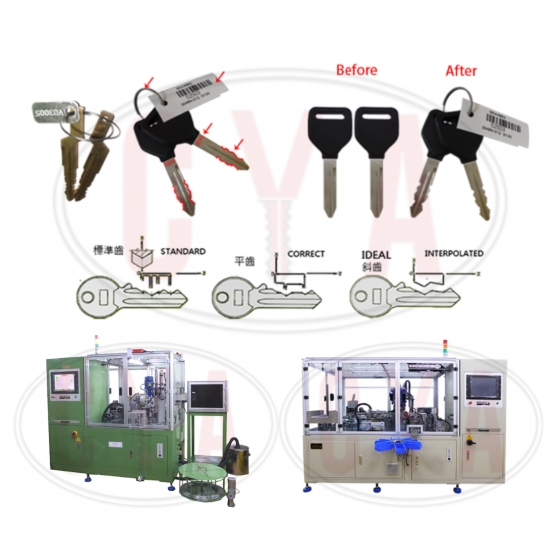

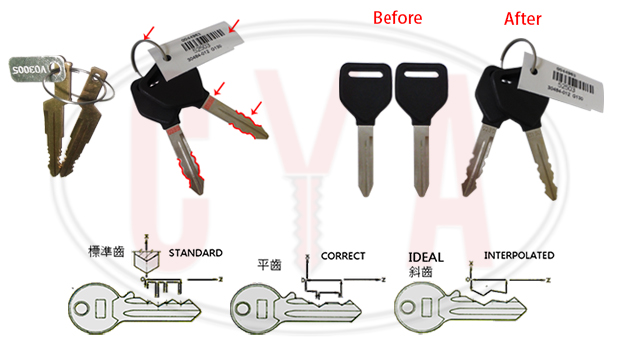

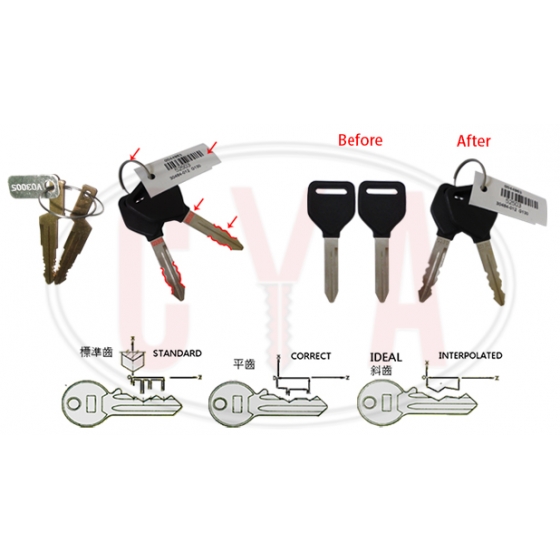

The main purpose of this machine is to do double side key-bit bitting on key blanks. It’s equipped with several other functions. The whole working processes are as below: 1.) magazine loading, 2.) dot matrix marking, 3.) double side bitting, 4.) burs scraping & chips brushing, 5.) ringing & un-loading to 6 box carousel. Above 5 functions can be designed in one machine by linear way transferring key blanks, and the cycle time can be deducted to 3 seconds for 5 key bits. If more functions such as camera checking, label printing (tag marking) and ringing with keys are required, the machine can be designed in clamp type by adding more clamps for each function station, but the cycle time will be longer than linear type.
| Comparison of holding keys |
Linear type |
Clamp type |
| cycle time (for 5 bits) |
2.5~3.0 |
5.0~6.0 |
| Time for changing fixture |
30 mins |
20 mins |
| cost of fixture quantity |
More |
Average |
| Camera |
Not applicable |
Applicable |
- Technical data: as each instruction below

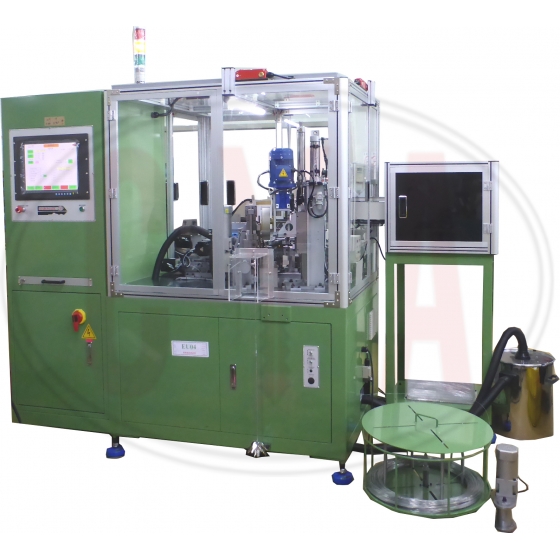

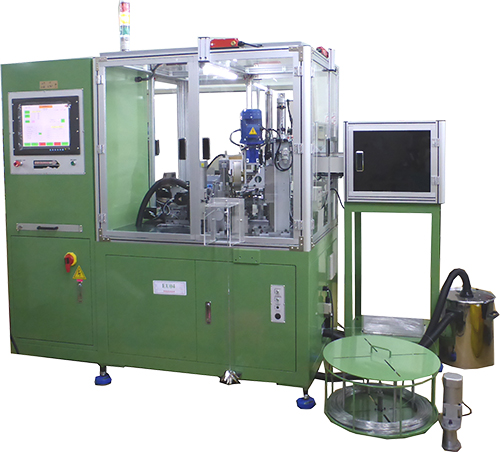

B200(Clamp Type)
St. 1: Key blanks loading (magazine loading or bowl loading.)
St. 2: Dot matrix marking on the key blanks.
St. 3: Double side bitting.
St. 4: burs scraping & chips brushing.
St. 5: ringing keys in a ring.
The main design of this machine is using 4 clamps to move each key blank to each station for processing. This design requires more space as the layout, and it’s less effort and time efficient for changing fixtures and maintenance. If customers require more functions such as camera checking, tag marking and ringing, the machine can be designed into a bigger scale with more clamps for extra functions. However, transferring work piece (keys) by clamps takes more time than the linear type transferring.
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production
statistics
- Machine Size (approx.): 276 cm x 218 cm x 200 cm
- Machine Weight (approx.): 1800 kg
- Power Supply: 220V / 3Ø
- Air Supply: 6 bar
- Cycle Time: 5~6 sec/ 1 piece

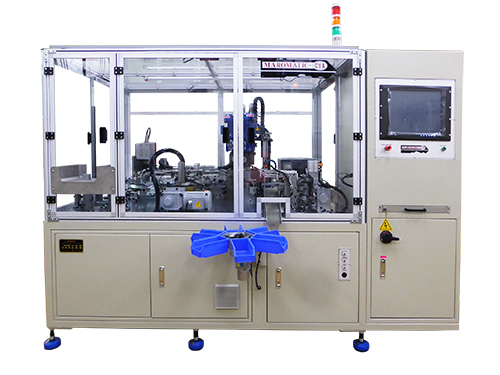

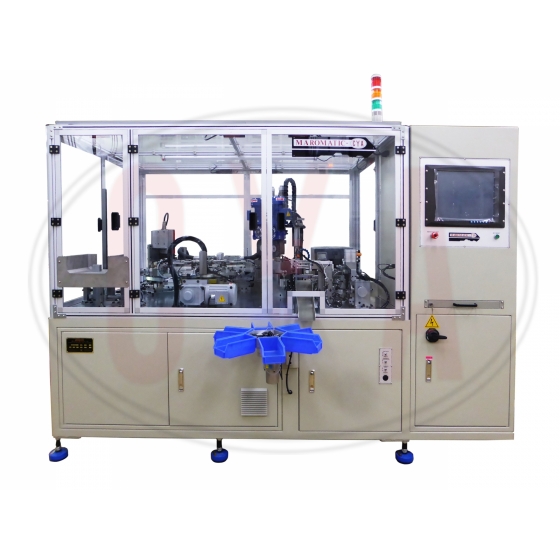

B200(Linear Type)
1.Key blanks loading (magazine loading or bowl loading.)
2.Dot matrix marking on the key blanks.
3.Double side bitting (with burs scraping while pulling out he bitten key)
4.Ringing keys in a ring with chips brushing.

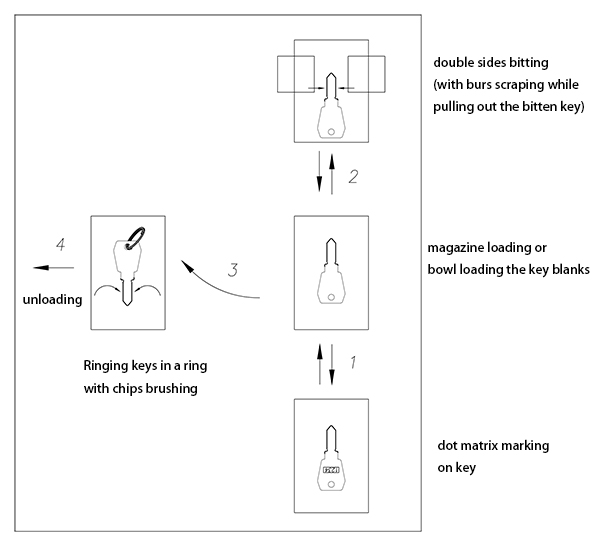

Above 4 mechanisms with 5 functions are made in a small space shown like the attached layout. The keys are transferred like the shown layout. So, the cycle time is very fast. However, due to the limit space, this type of machine can’t add more functions such as camera checking, tag marking, and ringing….
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production
statistics
- Machine Size (approx.): 200 cm x130 cm x 200 cm
- Machine Weight (approx.): 1800 kg
- Power Supply: 220V / 3Ø
- Air Supply: 6 bar
- Cycle Time: 2.5~3.0 sec/ 1 part
