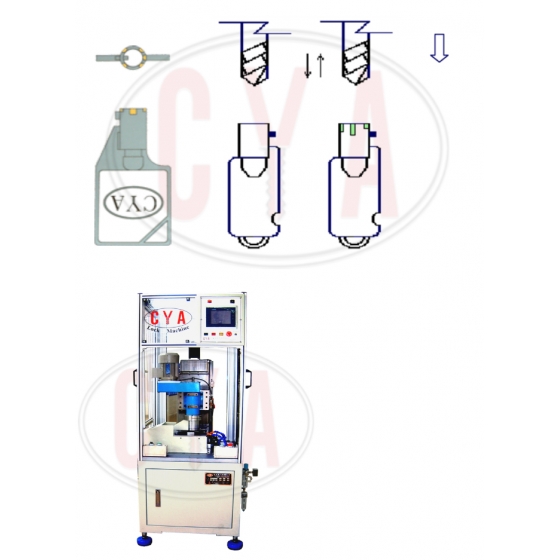

B500 -Tubular Key Bitting
Technical data
- Control System: HMI and PLC/PC
- Screen Display:machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 72cm x 75cm x 190cm
- Machine Weight (approx.): 500 kg
- Power Supply: 220V / 3Ø
- Air Supply: 6 bar
- Cycle Time: 8 sec/ 1 part
Products

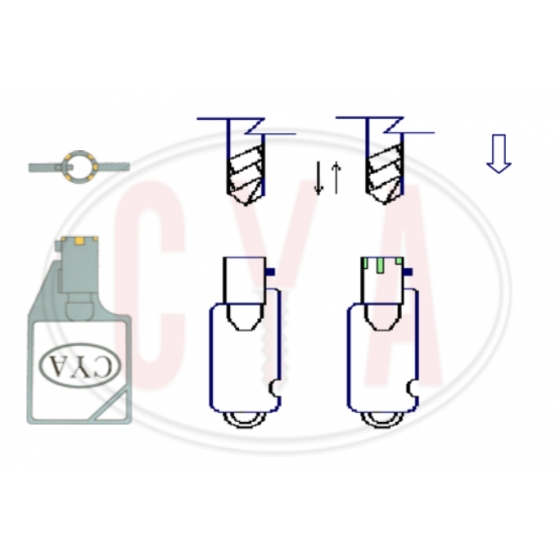

This machine is designed for biting the tubular keys. An operator manually loads the keys. The operator can set the key code through the touch screen. When error happens, the screen will show the error code and the cause. It is convenient for troubleshooting.
