A310 -Cam Preaseembly
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production
statistics on HMI screen
- Machine Size (approx.): 205 cm x 180 cm x 200 cm
- Machine Weight (approx.): 2000kg
- Power supply: 3 phase 220 V
- Air pressure: 6 bar
- Cycle time: 5 sec/ assembly
Products

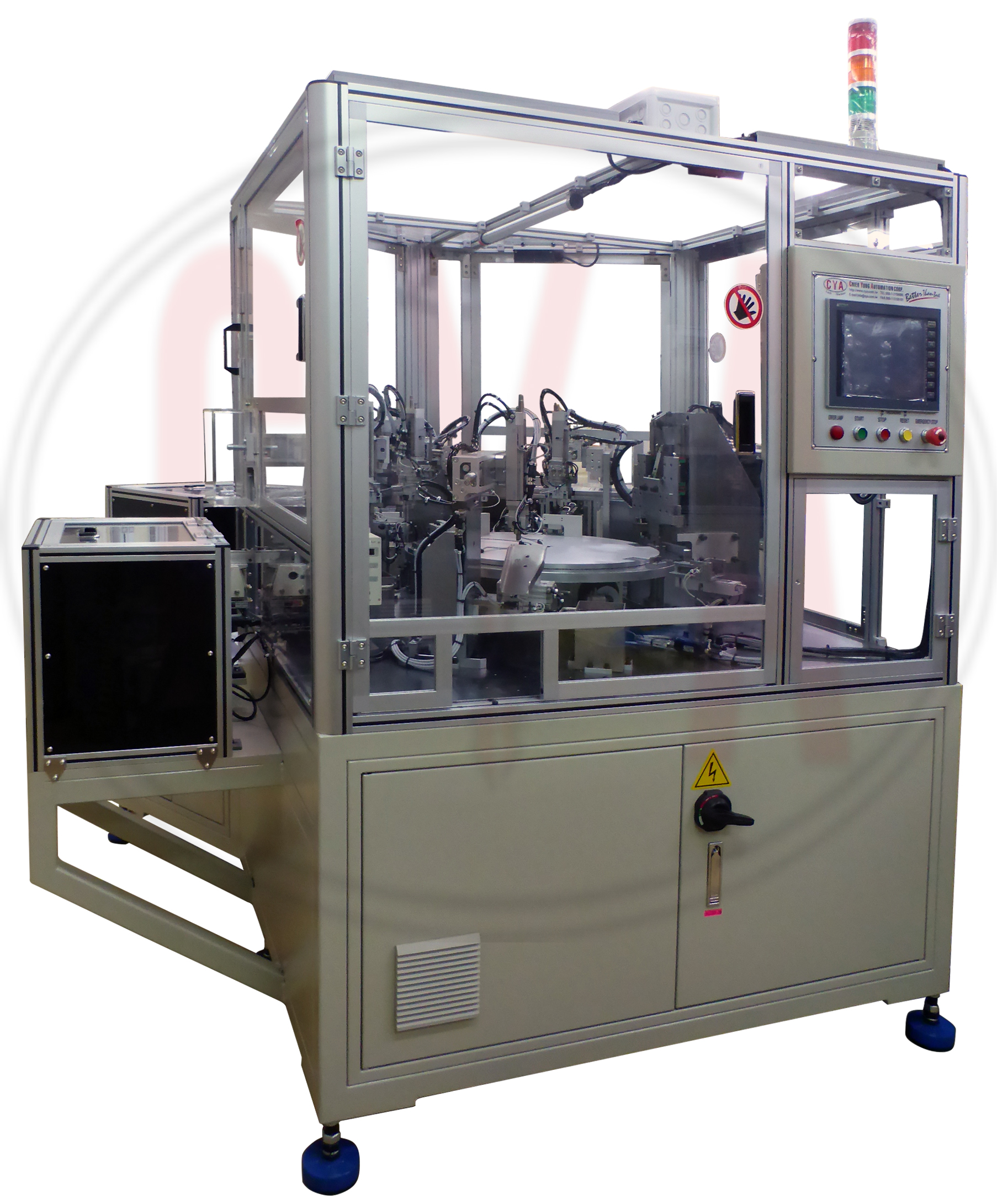

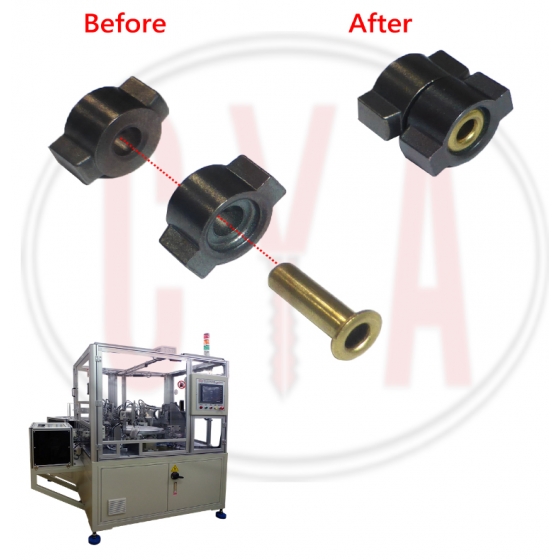

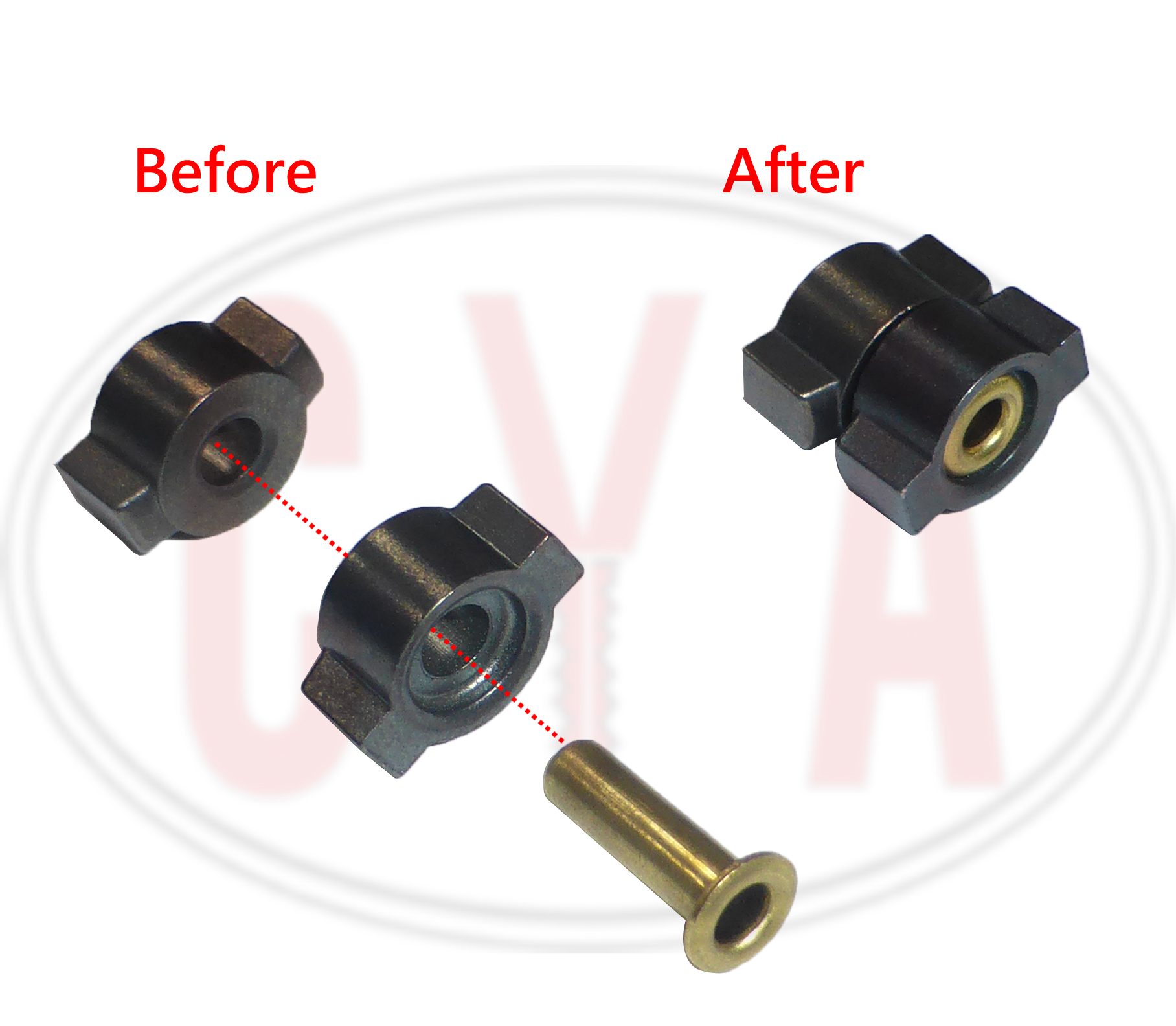

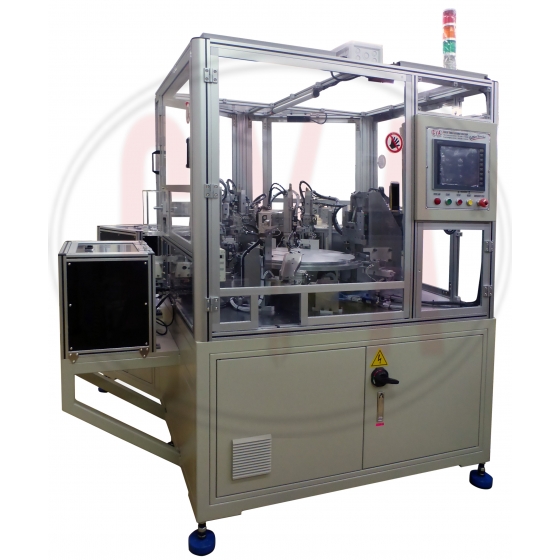

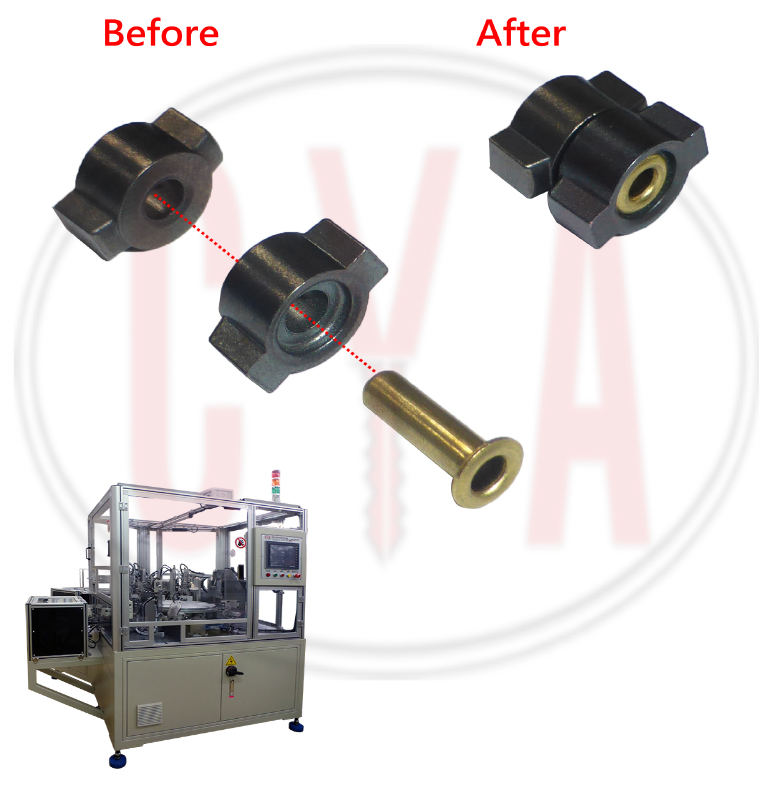

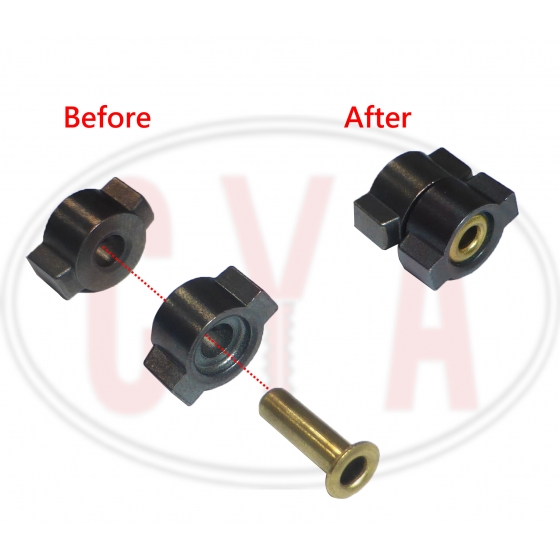

Cam pre-assembly machines assemble both the inside and outside cams for double-sided cylinders. With six stations, the machine is to assemble the 2 cams with the pins riveted. 2 cams are separately loaded into different station with different direction by bowl feeder. The pins are loaded through the 2 cams. Then the riveting station will rivet the pin within 2 cams. The inspecting station will follow to check the assembly is qualified or not. Then unload the finished Assembly.
