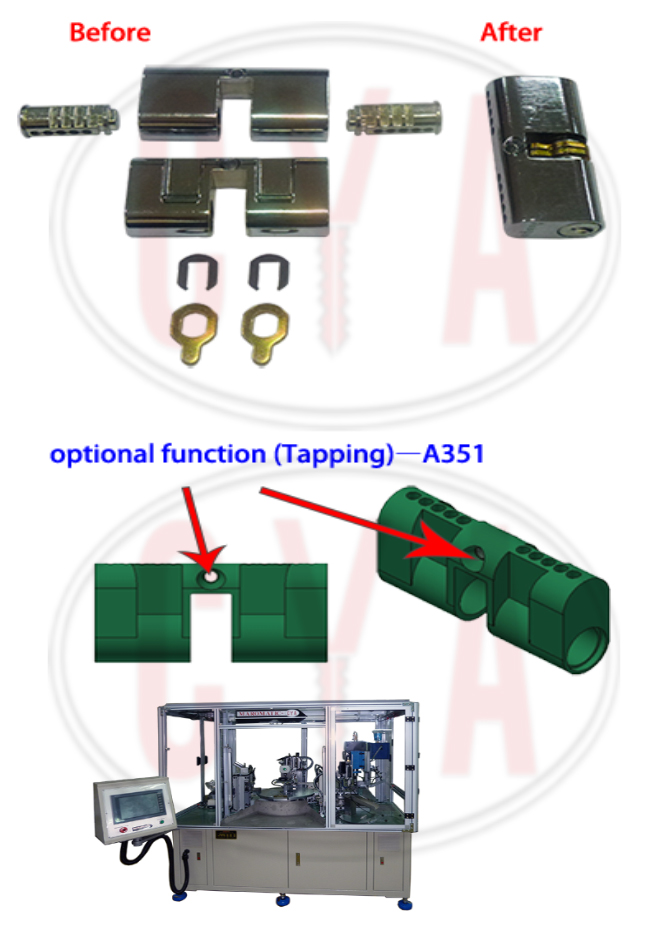

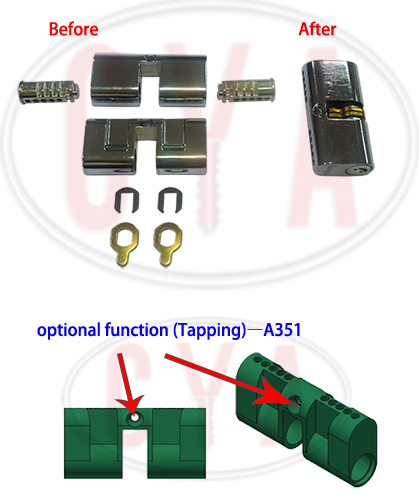

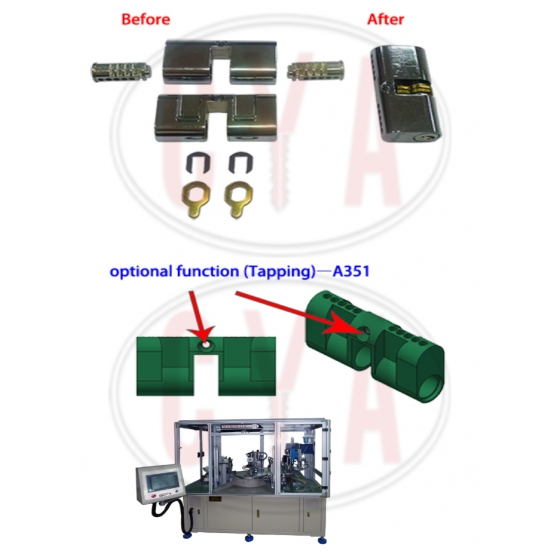

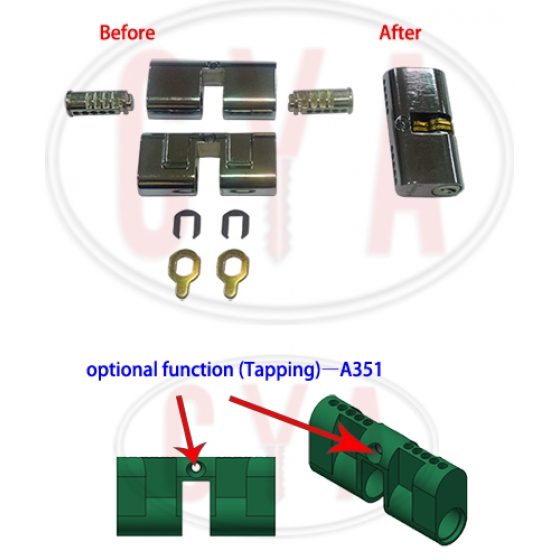

Cylinder pre-assembly machines add all components required (2 barrels, 2 cams, and 2 C-clips) prior to the pinning process. Depending on the design of the cylinders, the machines insert plugs (barrels) into housings, install cams, tail pieces, and retaining pins or retaining clips. An operator manually loads a housing and two barrel (right and left side). Vibratory feeder bowls automatically feed all necessary components. The final assembly is automatically unloaded into a chute. Machine A351 also adds the threaded mounting hole.

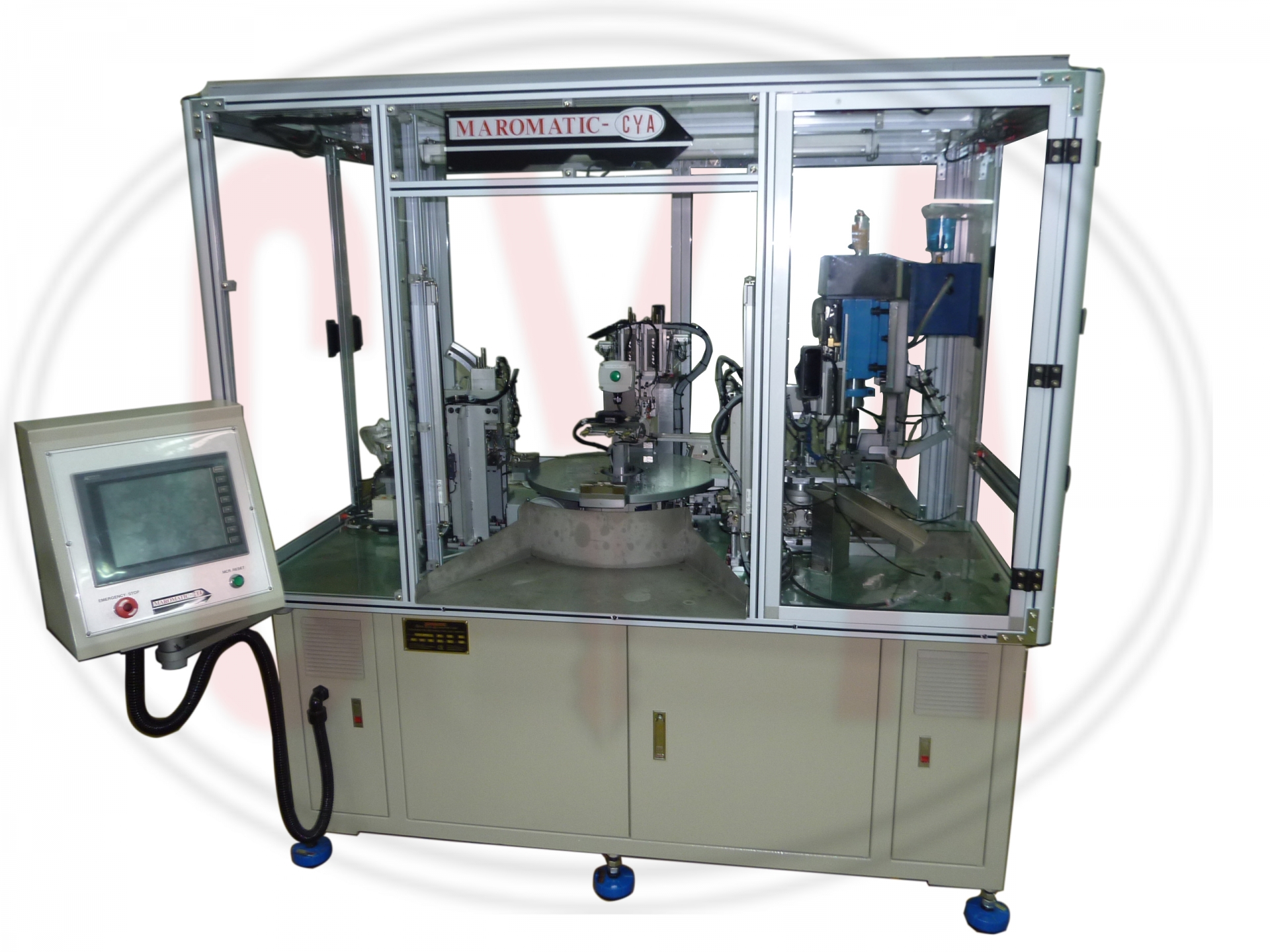

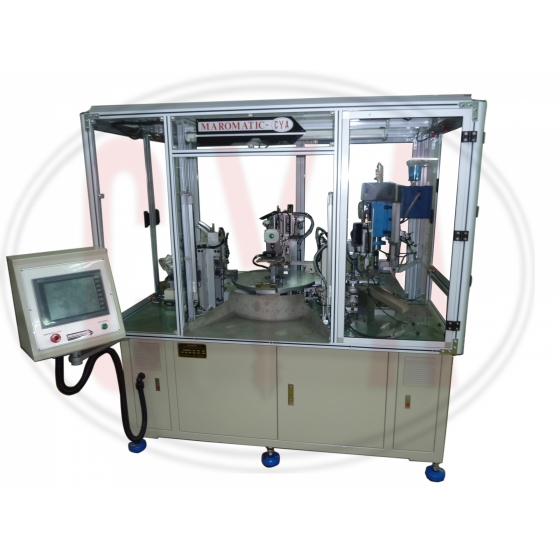

A350 Euro Type Cylinder PreassemblyA351 Euro Type Cylinder Preassembly with M5 hole tapping
