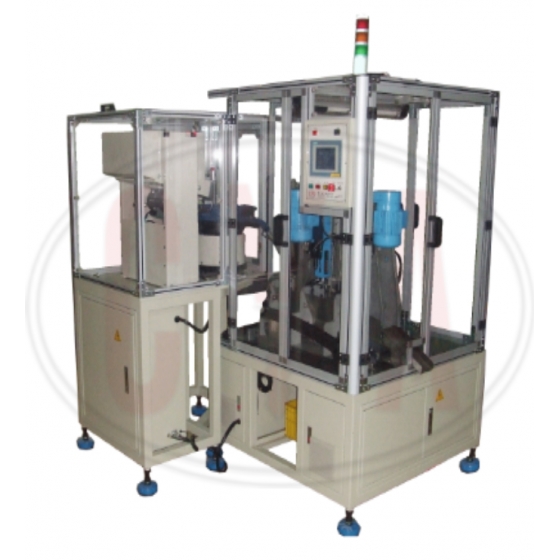

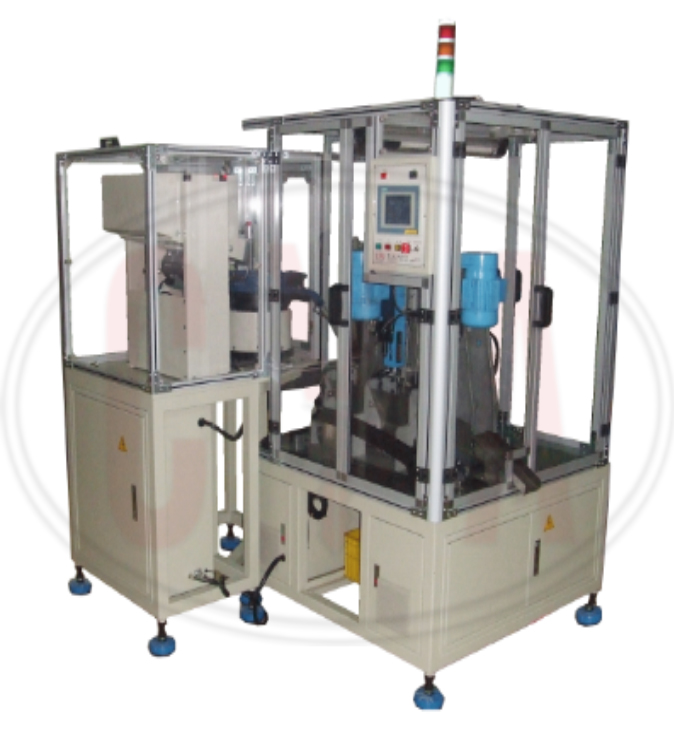

DNC120 -Cylinder Pinhole Drilling with Barrel Hole Reaming
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 180 cm x 65 cm x 200 cm
- Machine Weight (approx.): 900 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 8 sec/ 1 part (for 6 holes)
Products

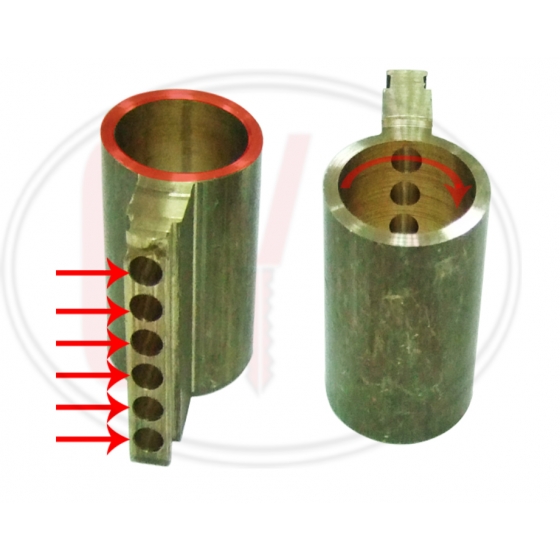

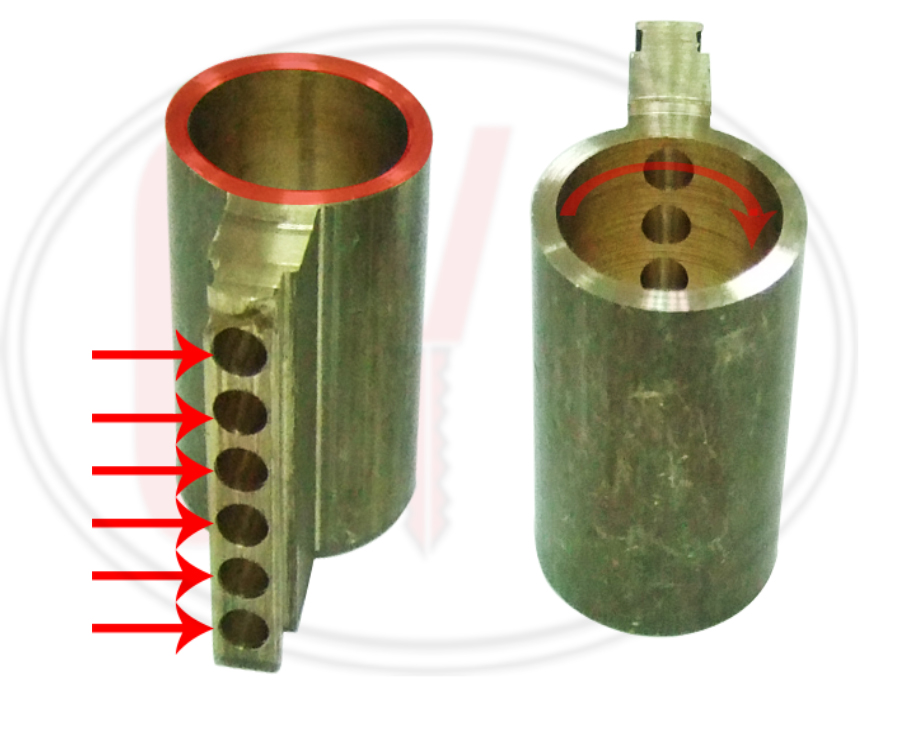

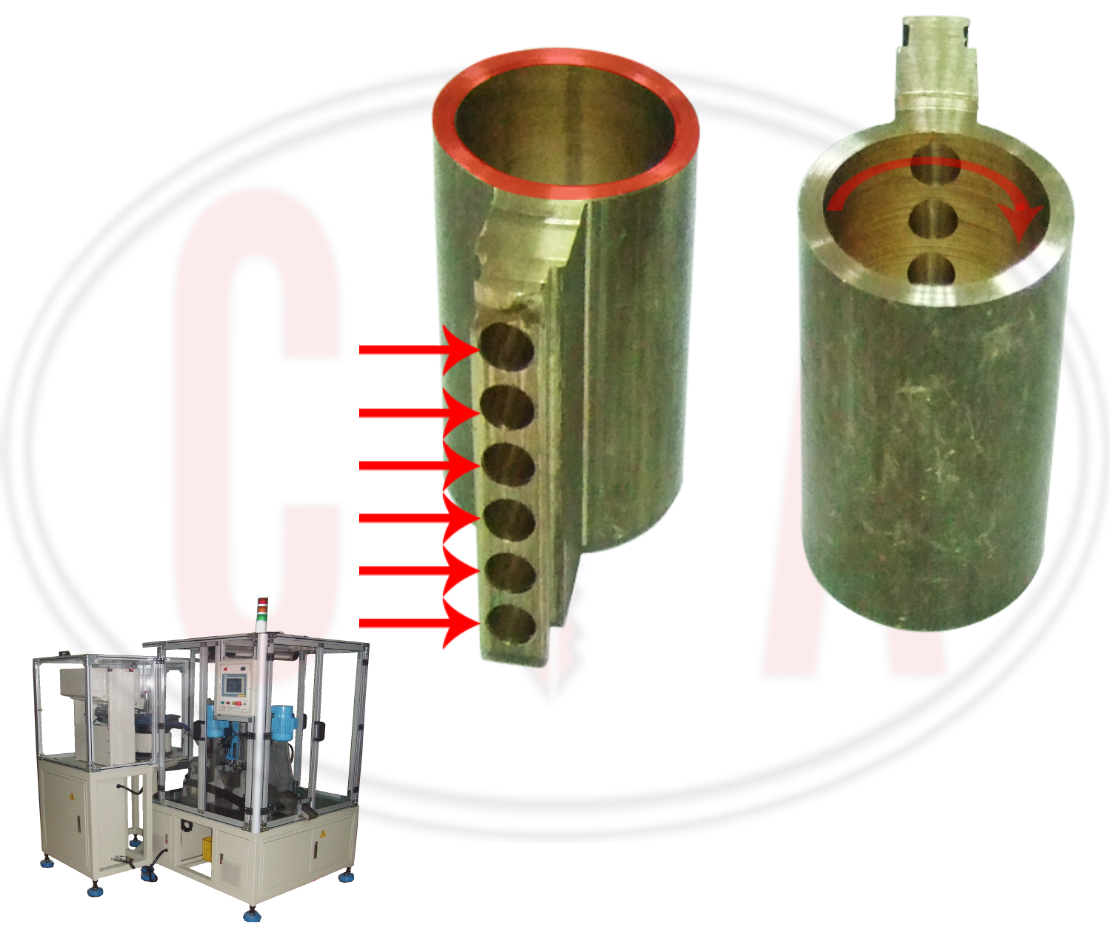

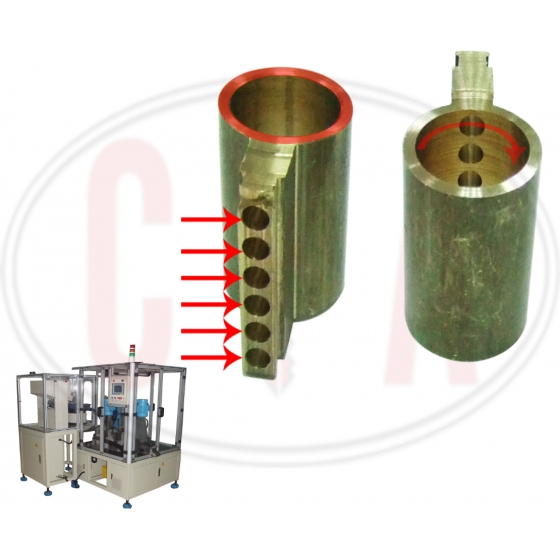

Bowl feeder with linear transfer loads the cylinder blank into the fixture. First spindle will do the reaming work on the barrel hole, and then the forming cutter can make the fine ring surface. Second spindle with servo motor will do the pinhole drilling work. Not only pitch of the pinhole, but also the depth of pinhole could be numeric controlled by HMI.
