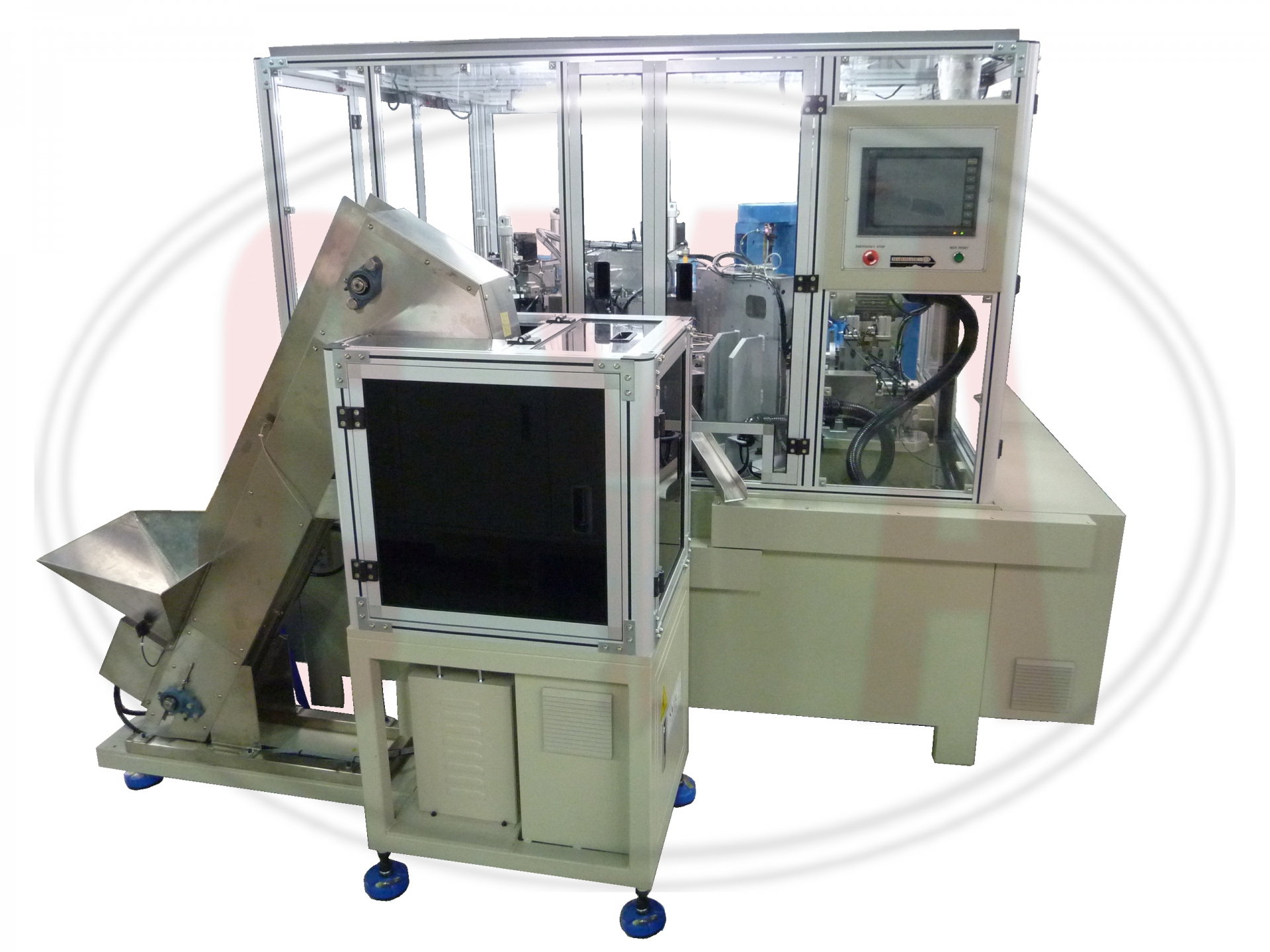

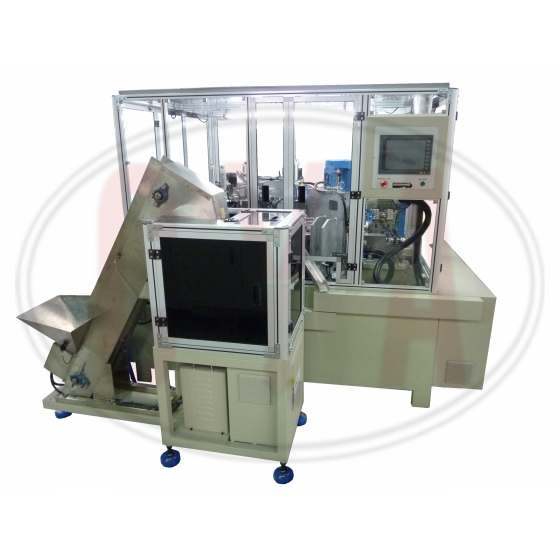

DNC130 -Pinhole Drilling (index type)
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 261 cm x 210 cm x 180 cm
- Machine Weight (approx.): 4000 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 7 sec/ 1 part
Products

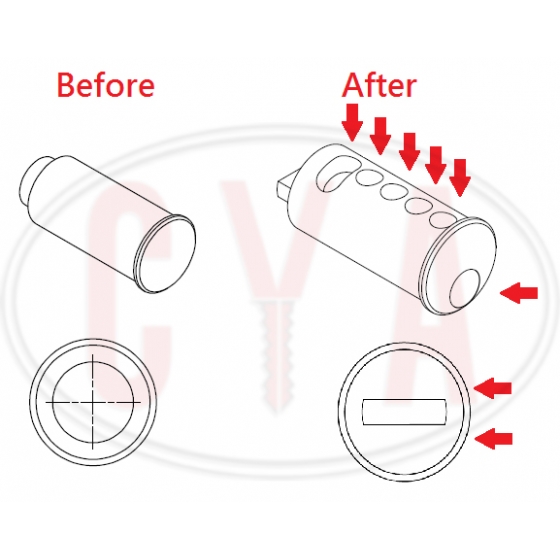

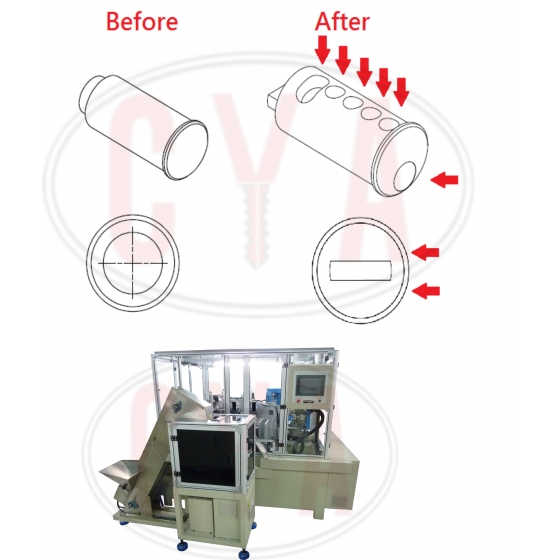

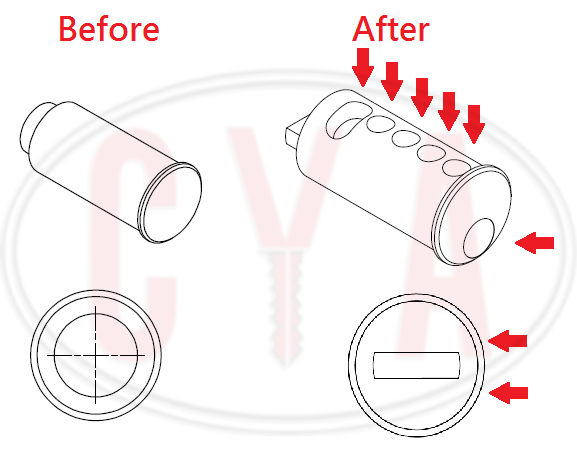

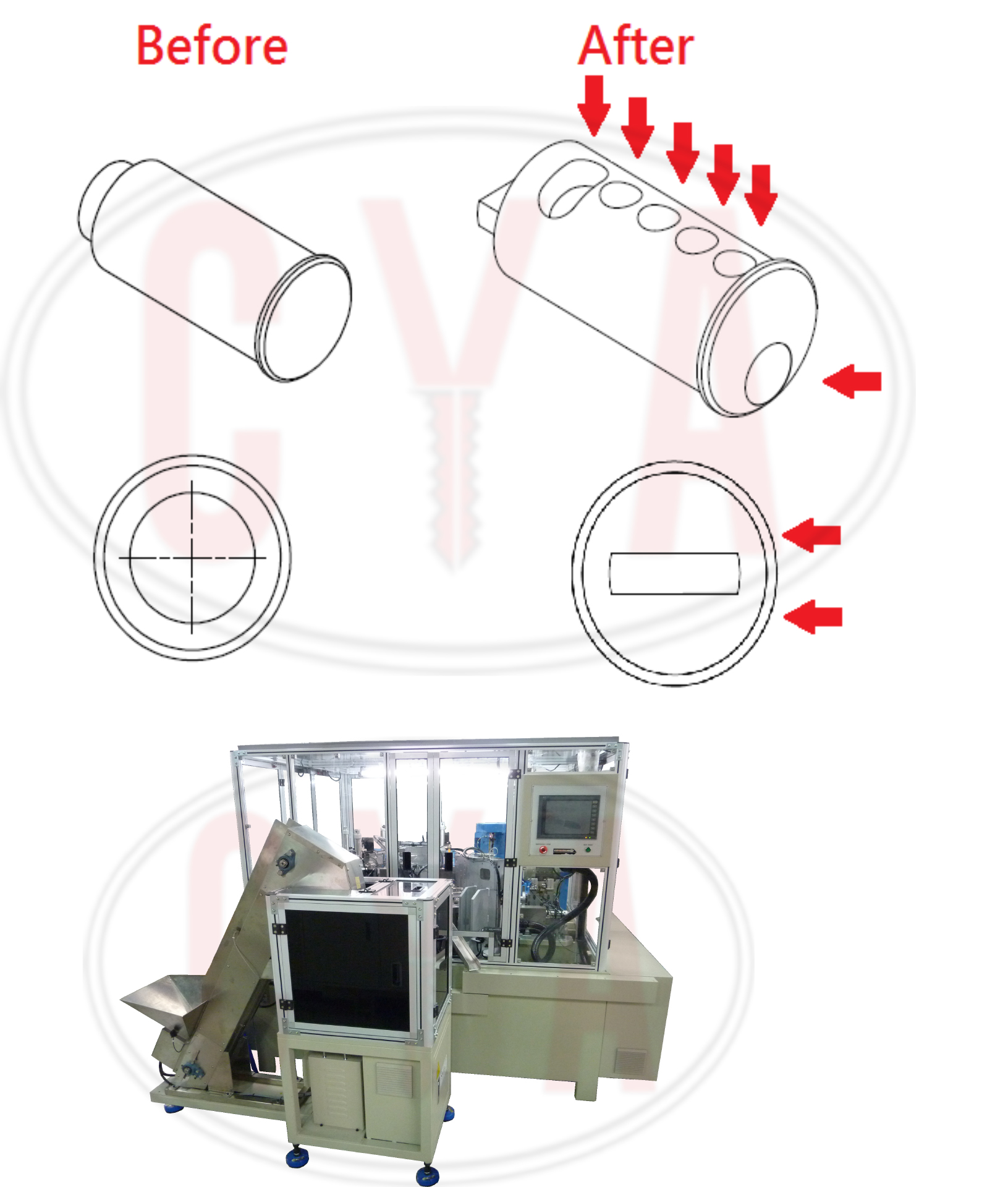

This automatic machine is designed for drilling pin holes of padlock’s barrel. The operator can load large amount of barrel blanks into auto feeding system and the machine will automatically transfer the barrels for drilling pin holes, milling actuator’s slot and retainer pin hole groove and milling coutersink hold. The finished barrels will be unloaded to the chute. A vibratory feeder bowl automatically feeds the screw machine blanks.
