DNC200 -Pinhole Drilling (2 sides)
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 140 cm x 90 cm x 190 cm
- Machine Weight (approx.): 1200 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 25 sec/ 1 part (5 holes on each side)
Products

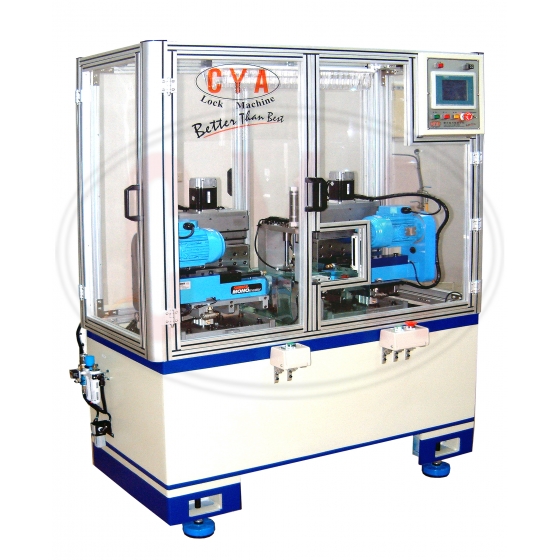

This semi-automatic NC machine is designed for pinhole drilling on two sides of the part (like the barrel or the cylinder). Manual loads the part in the fixture and manual unloads the finished part. The pitch of the pinholes is adjustable. Servo mechanism will do the pinhole drilling according to the input pitch value.
