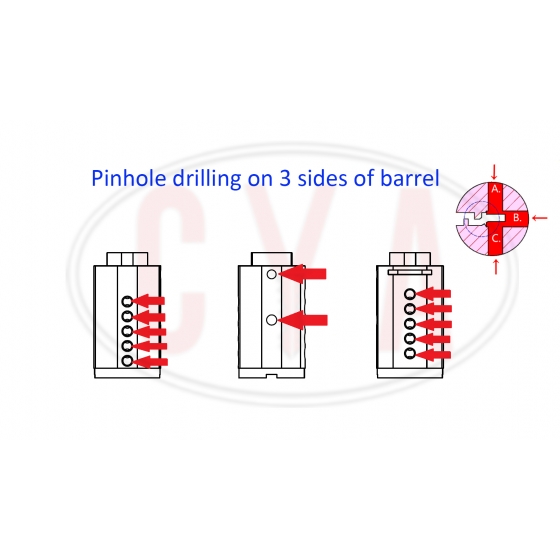

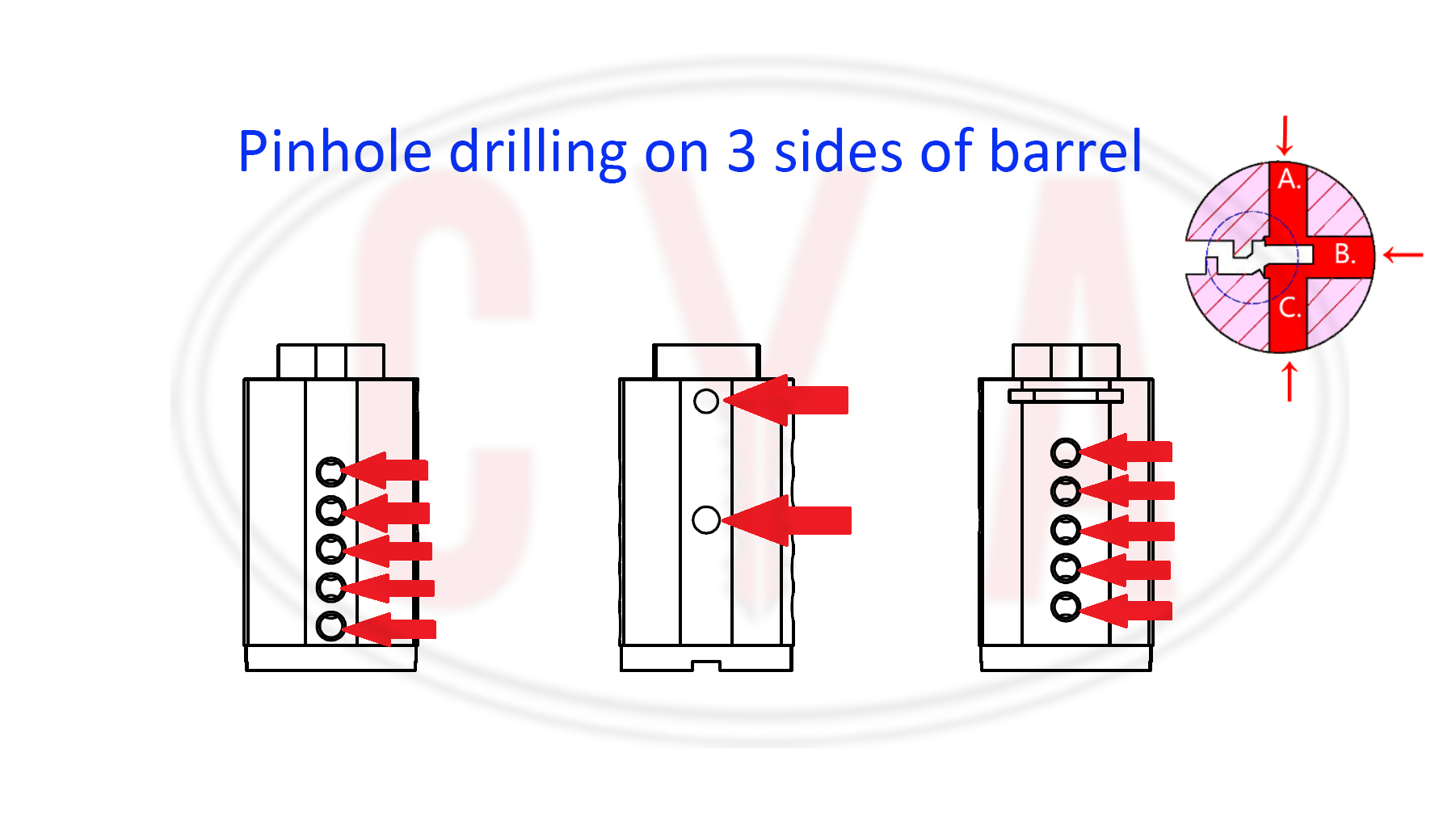

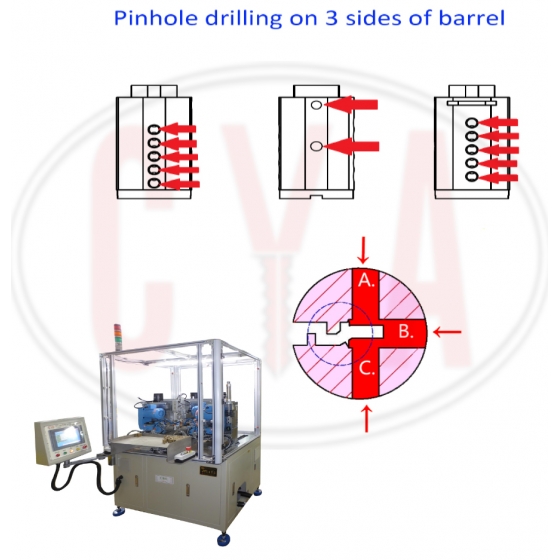

DNC300 -Pinhole Drilling (3 sides)
Technical data
- Control System: HMI and PLC/PC
- Screen Display: machine commands, error codes, trouble shooting guide, and production statistics on HMI screen
- Machine Size (approx.): 120 cm x 100 cm x 210 cm
- Machine Weight (approx.): 1300 kg
- Power supply: 3 phase 220V
- Air pressure: 6 bar
- Cycle time: 15 sec/ 1 part
Products
Manually loading the barrel into the fixture, and then the fixture holds the barrel in position. After that, 3 drillings units drill the pinholes on each side at the same time. There is a row of pinholes on every 90 degrees of the barrels and 3 sides in total. There are 3 servo mechanisms with the drilling units. The pitch could be adjusted by the servo mechanism. Manually un-loading the finished barrel from the fixture.
