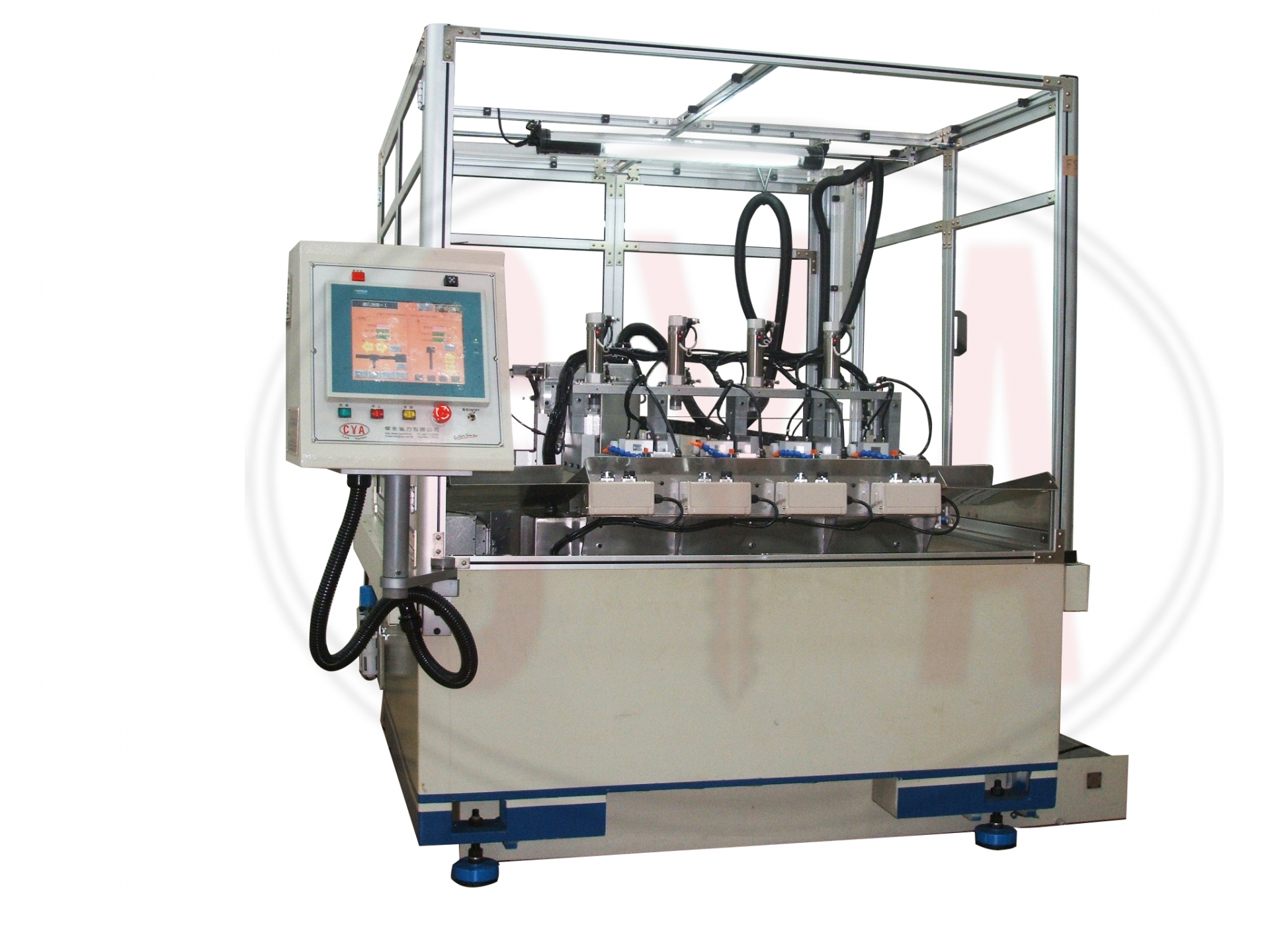

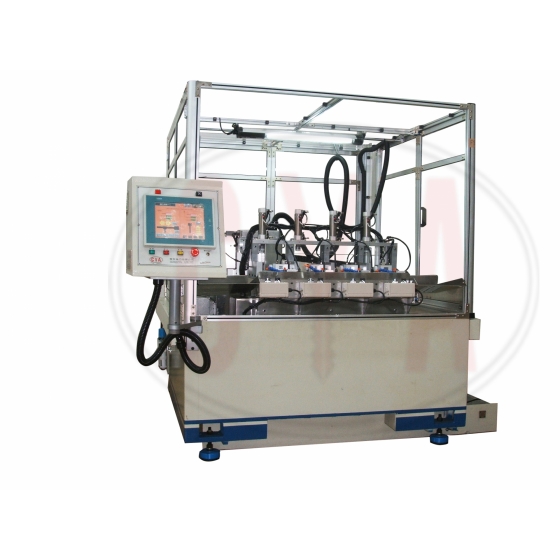

DNC700 -Oil-hole Drilling for Door Closer
Technical data
  • Control System: HMI and PLC/PC
  • Screen Display: machine commands, error codes, trouble shooting guide, and production
      statistics on HMI screen
  • Machine Size (approx.): 110 cm x 80 cm x 200 cm
  • Machine Weight (approx.): 600 kg
  • Power supply: 3 phase 220V 60Hz
  • Air pressure: 6 bar
Products

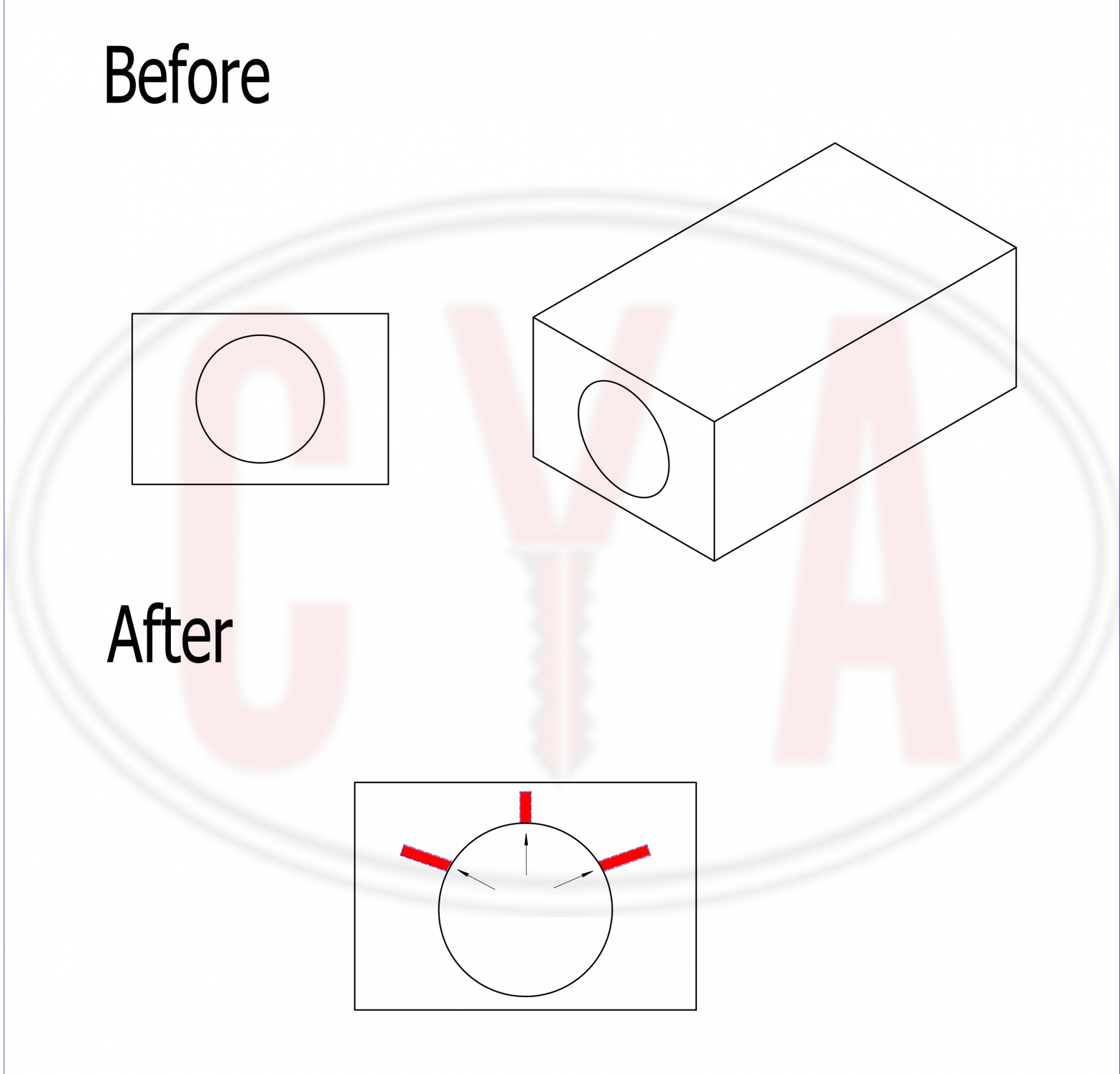

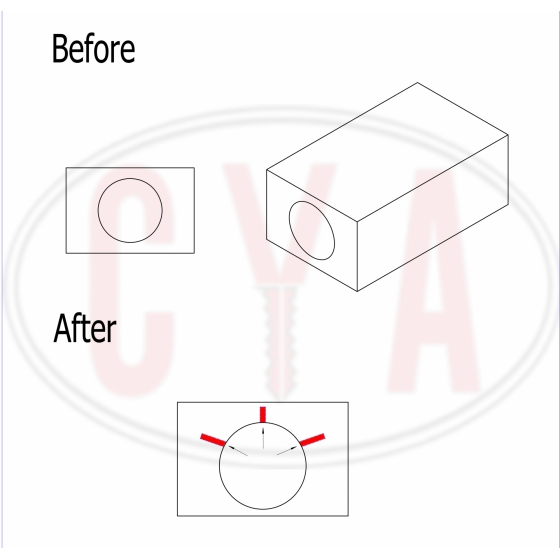

There are 4 nests in this machine. They are fixed on the machine from lift to right in a linear way. And one drilling unit is installed on the rail way which is face to the 4 nests. Manual loading the body one by one to the 4 nests and lock it in position. The drilling unit will move to drill inside holes (rotating different degree ) on the first body in the 1st nest. The drilling work will be done in request from the 1st nest to the 4st nest. After the inside holes drilling work, manual unloads the finished body from each nest.
