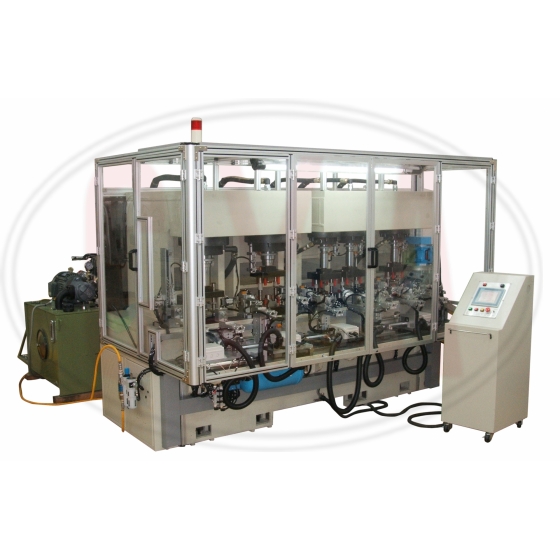

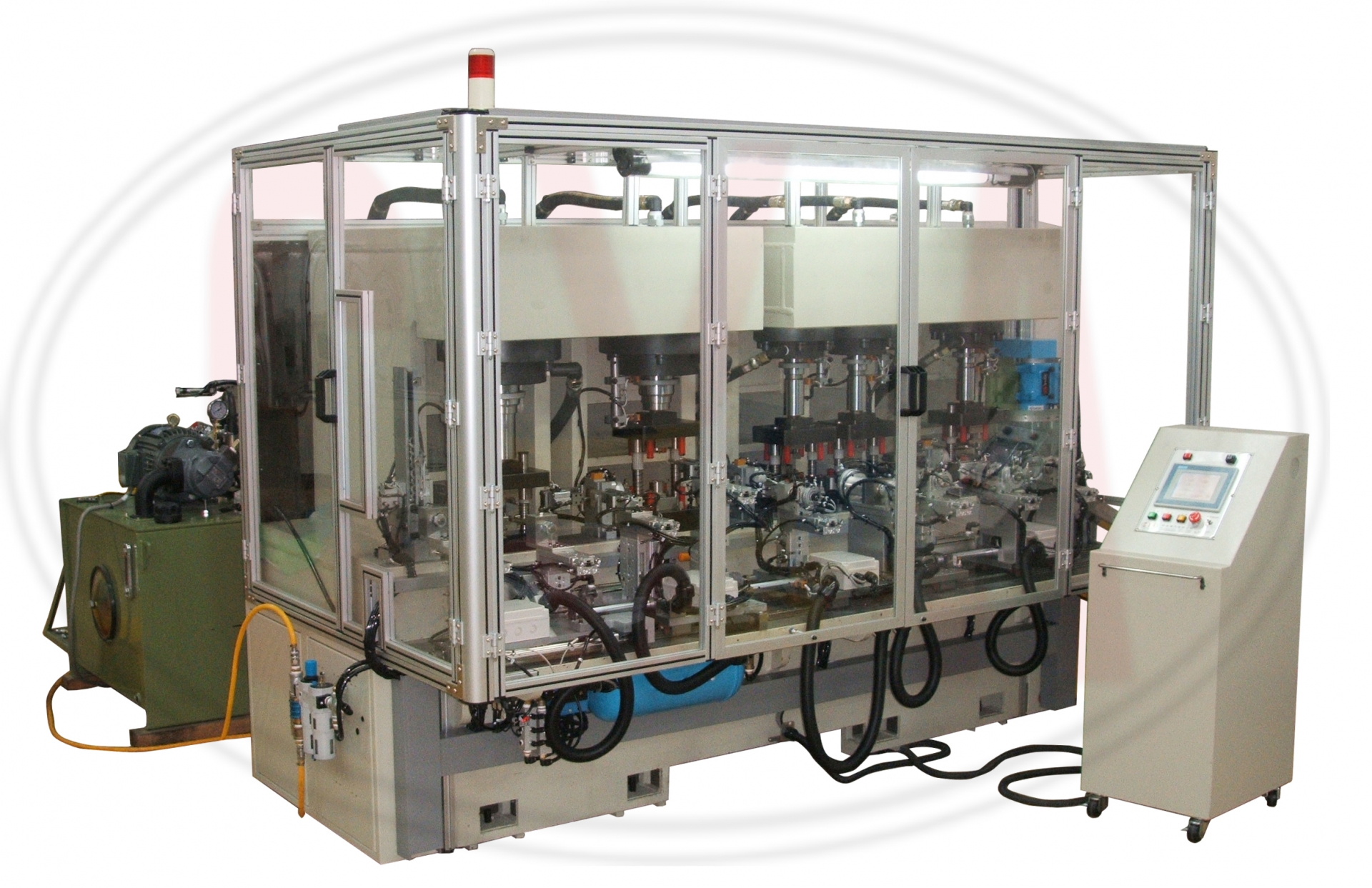

STF100 -Shaft Tube Forming
Technical data
  • Control System: HMI and PLC/PC
  • Machine Size (approx.): 350cm x 300cm x 200cm
  • Machine Weight (approx.): 1000 kg
  • Power supply: 3 phase 220V
  • Air pressure: 6 bar
Products

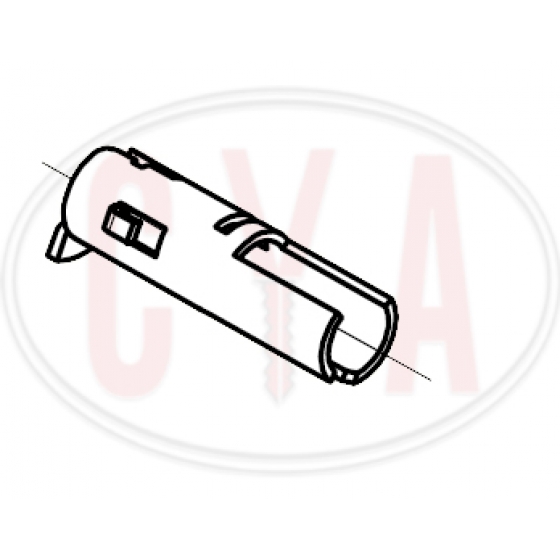

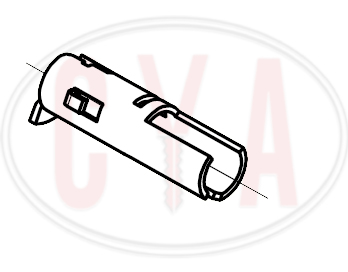

Shaft tube needs to have correct size and to be bent on some places. With auto-feeder, the shaft tubes are loaded into machine by magazine. There are 6 stations all with hydraulic power pressing the shaft tube in the mould for getting good diameter, cutting the excess part, bending somewhere….. Then, the finish shaft tube will be unloaded to the slide for unloading.
